LOCATION: Newbury and Exeter Street, Boston MA

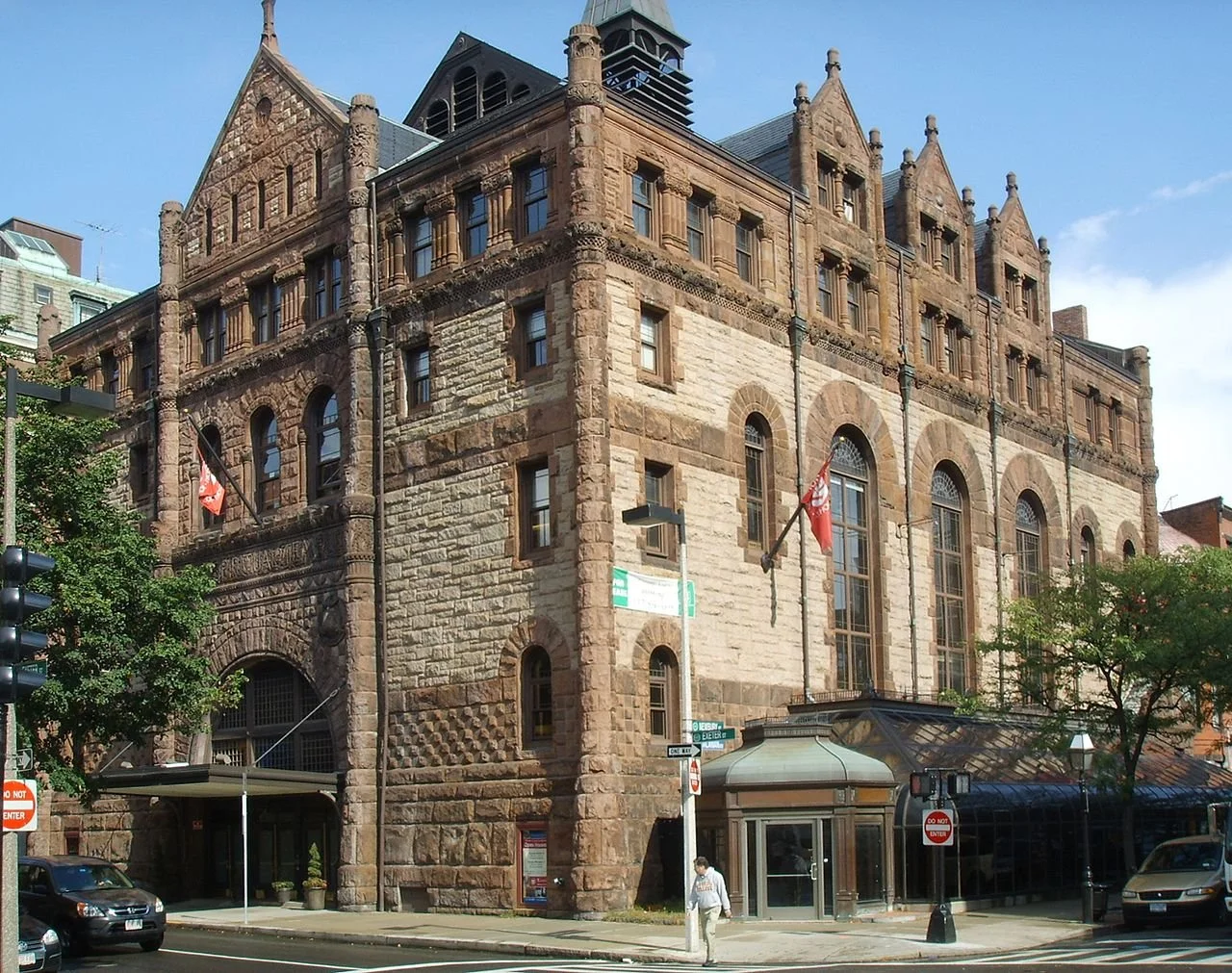

HISTORY: The building is a Richardsonian Romanesque building at the corner of Exeter and Newbury Streets, in the Back Bay section of Boston, Massachusetts. It was built as the First Spiritual Temple, 1884–85, by architects Hartwell and Richardson. "Wealthy socialite Mrs. [Marcellus Ayer] (Hattie M. Ayer) and her friends" organized the conversion in 1914 of church into cinema; Clarence Blackall designed the renovation. For seventy years, from 1914 to 1984, it operated as the Exeter Street Theater. It now houses a Montessori School and a Restaraunt on the ground and garden levels.
SCOPE: 3D Capture & Document the entire building and include all exterior details.

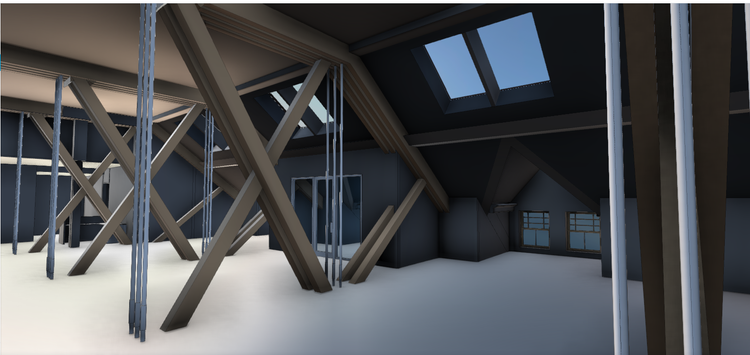

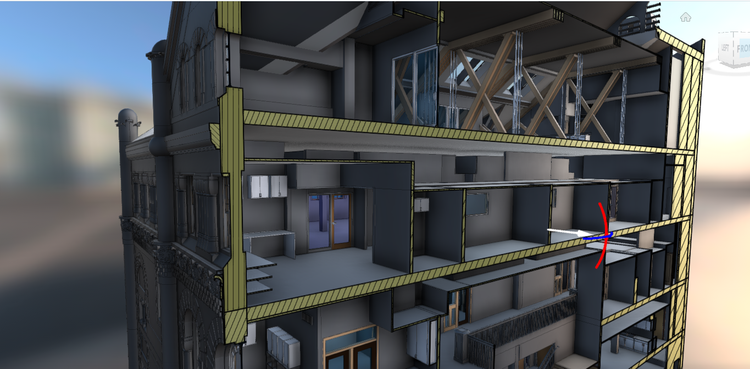

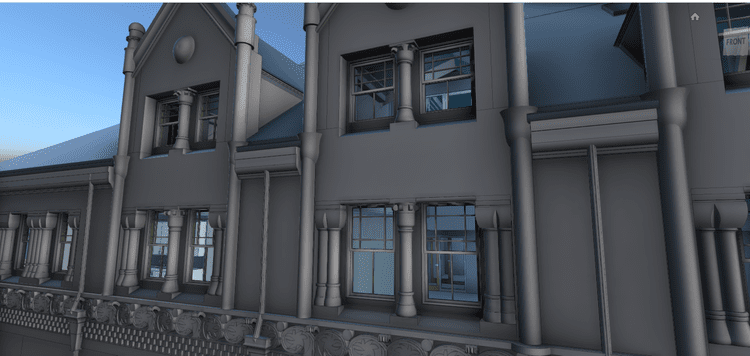

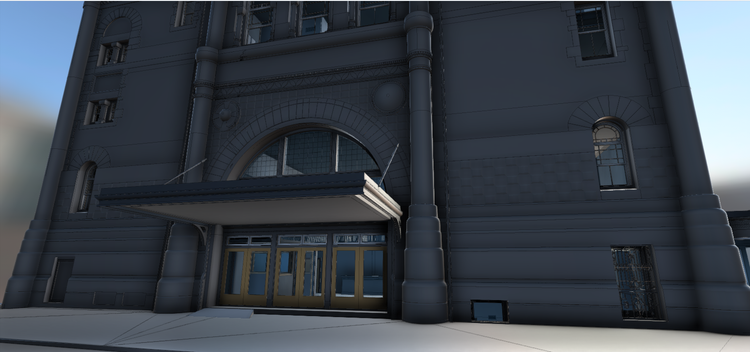

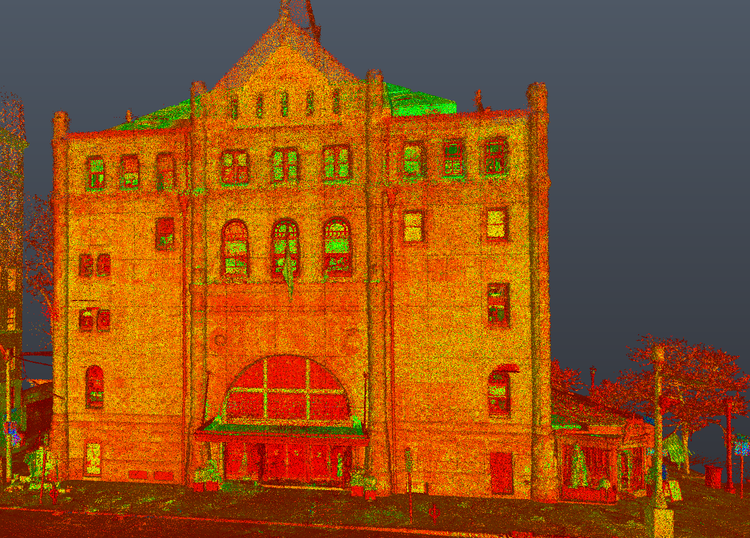

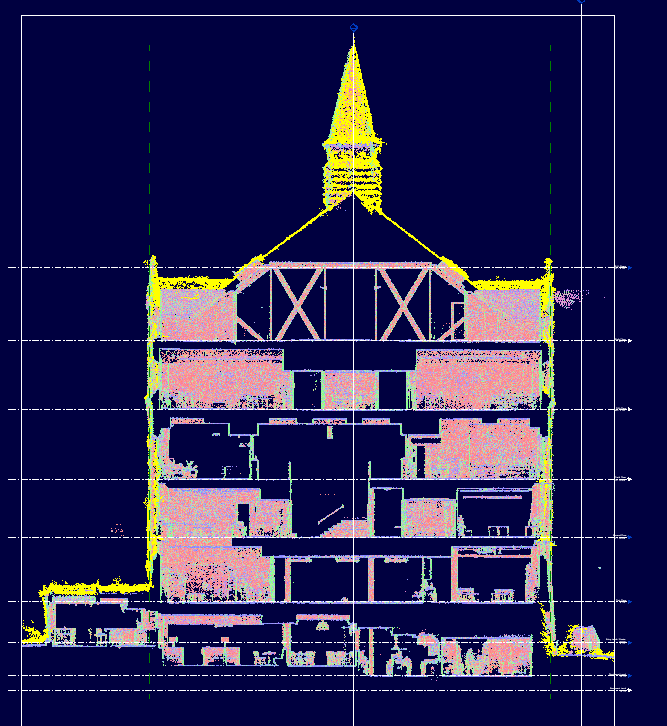

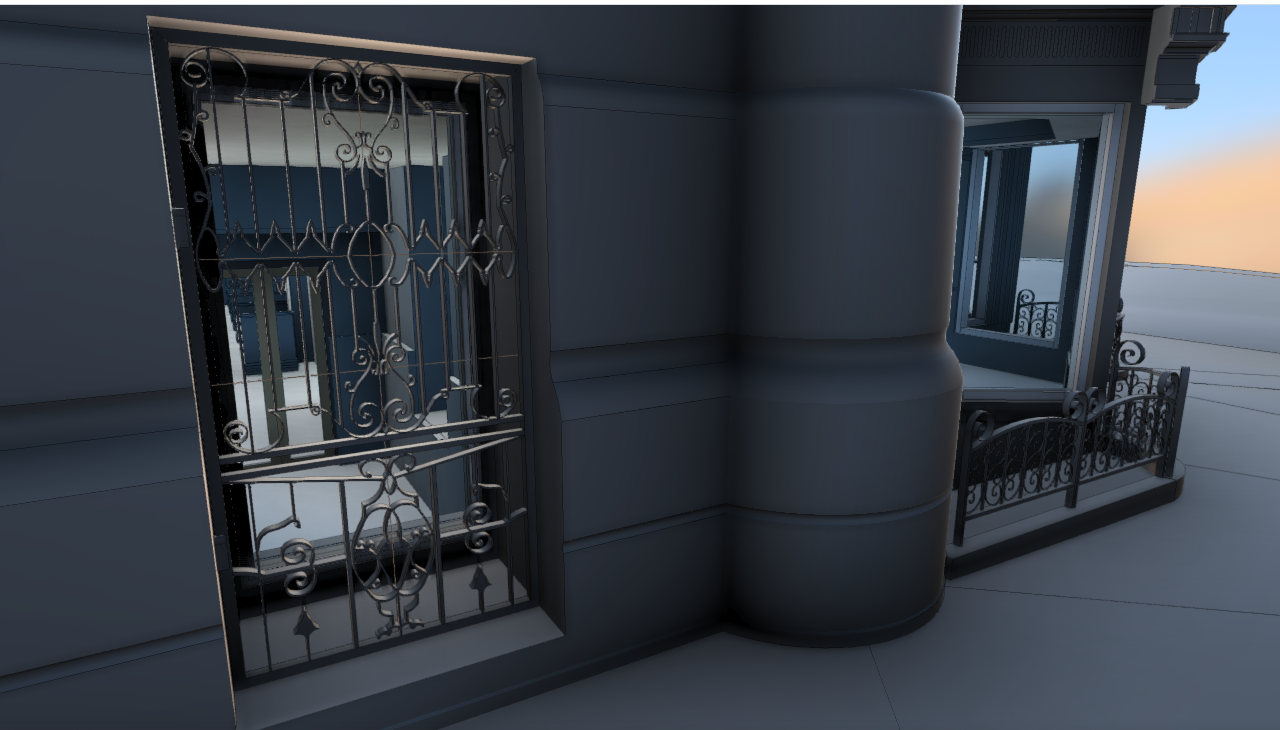

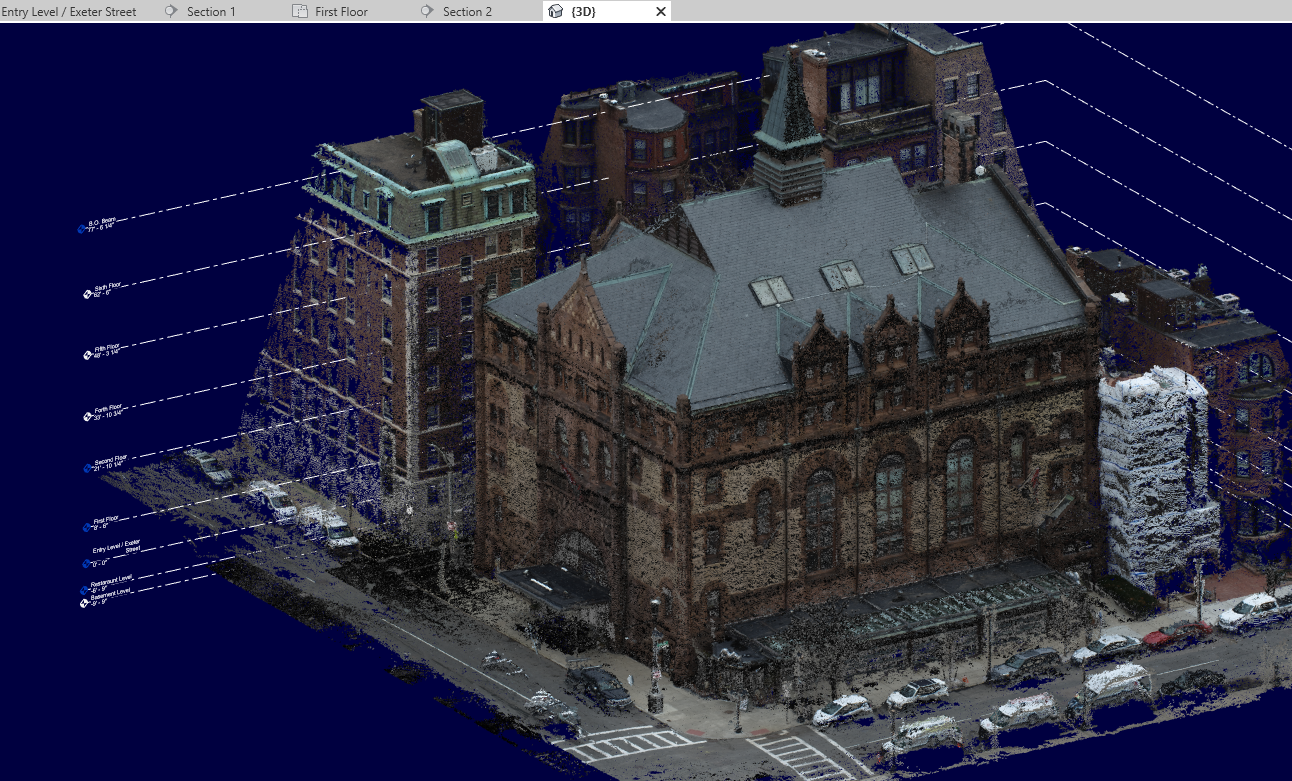

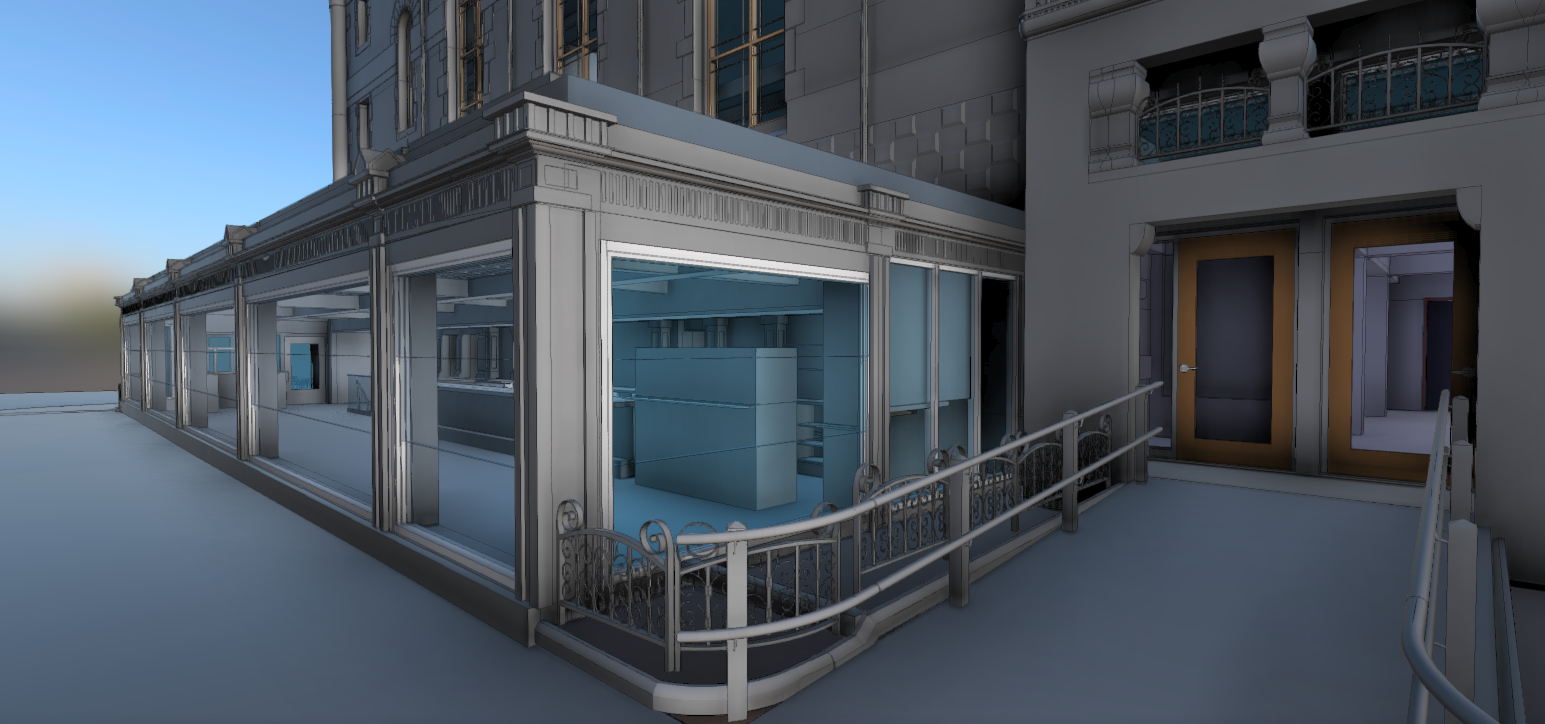

PROCESS: Schedule and coordinate survey work. Create SLAM cloud of property. Capture 360 Video and Photos. Create control measurements across property. Fly drone convert imagery to 3D LAS Data. Register data to each other. Convert all data to Recap .Utilize data to model entire building Revit and export multiple views and models for use in other platforms.

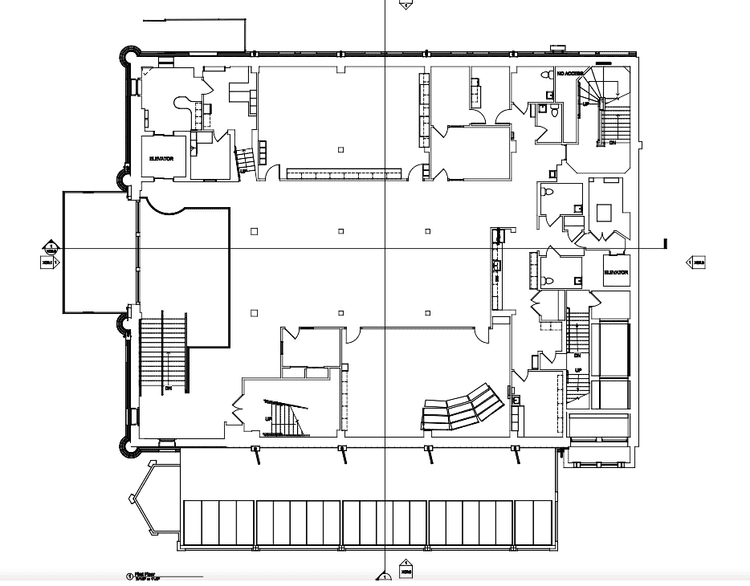

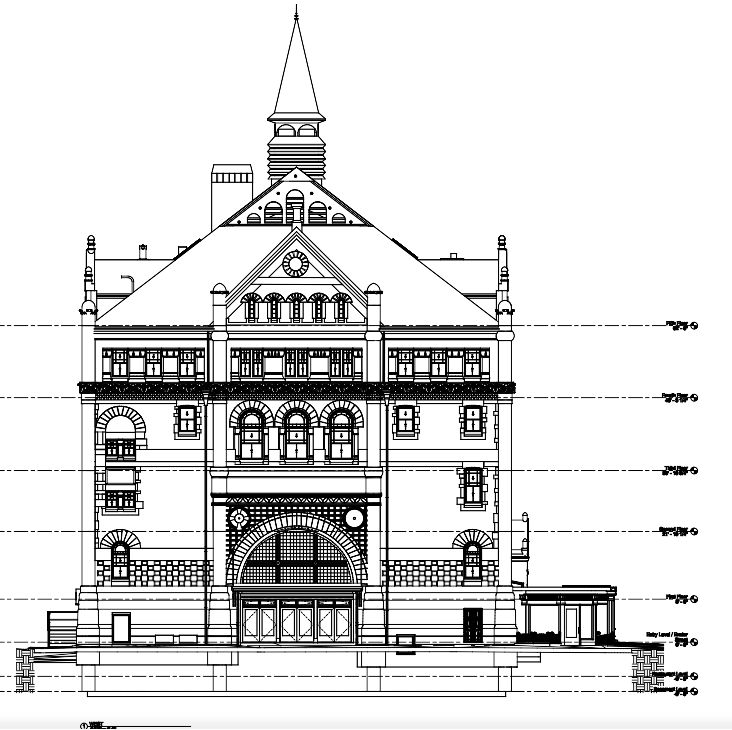

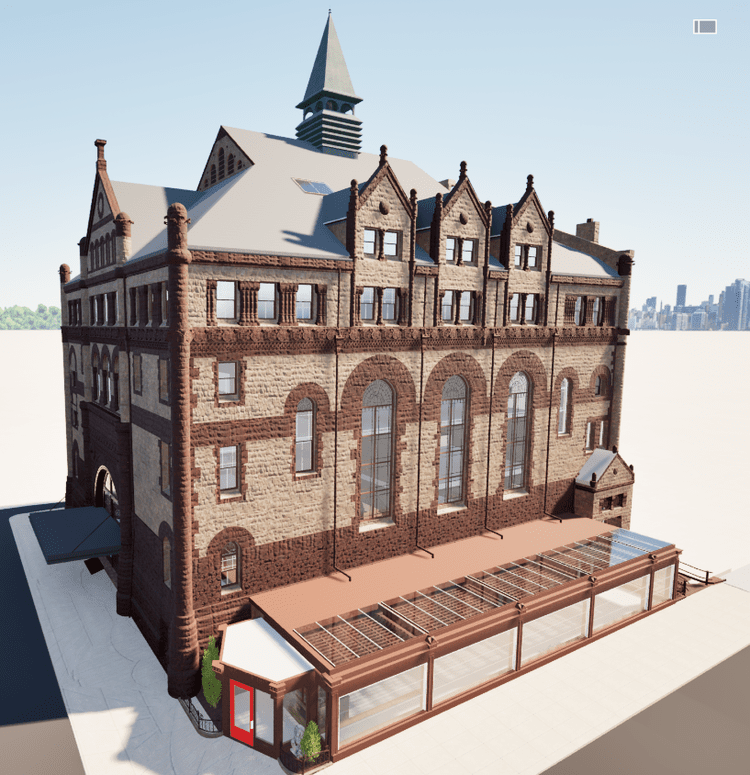

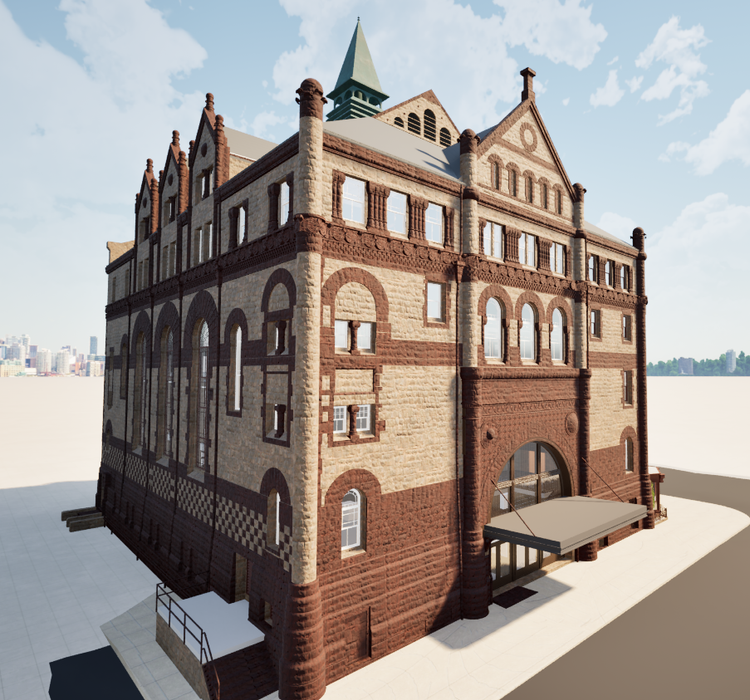

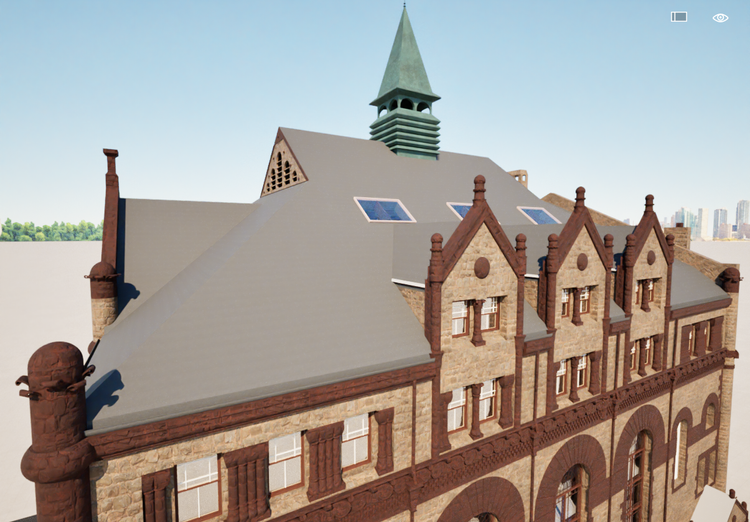

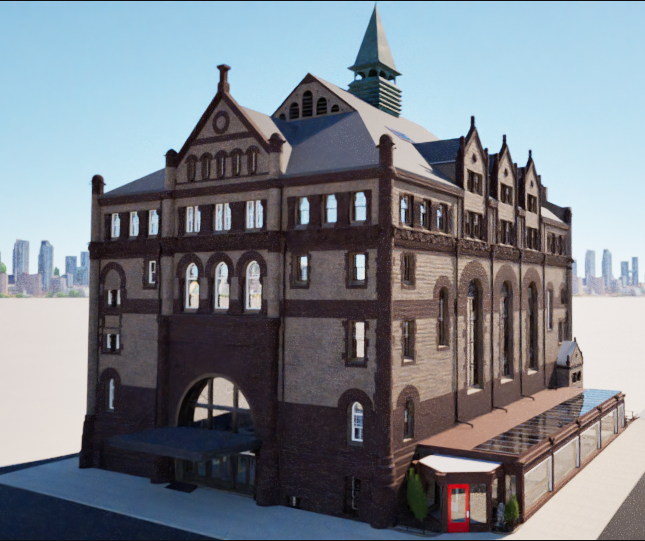

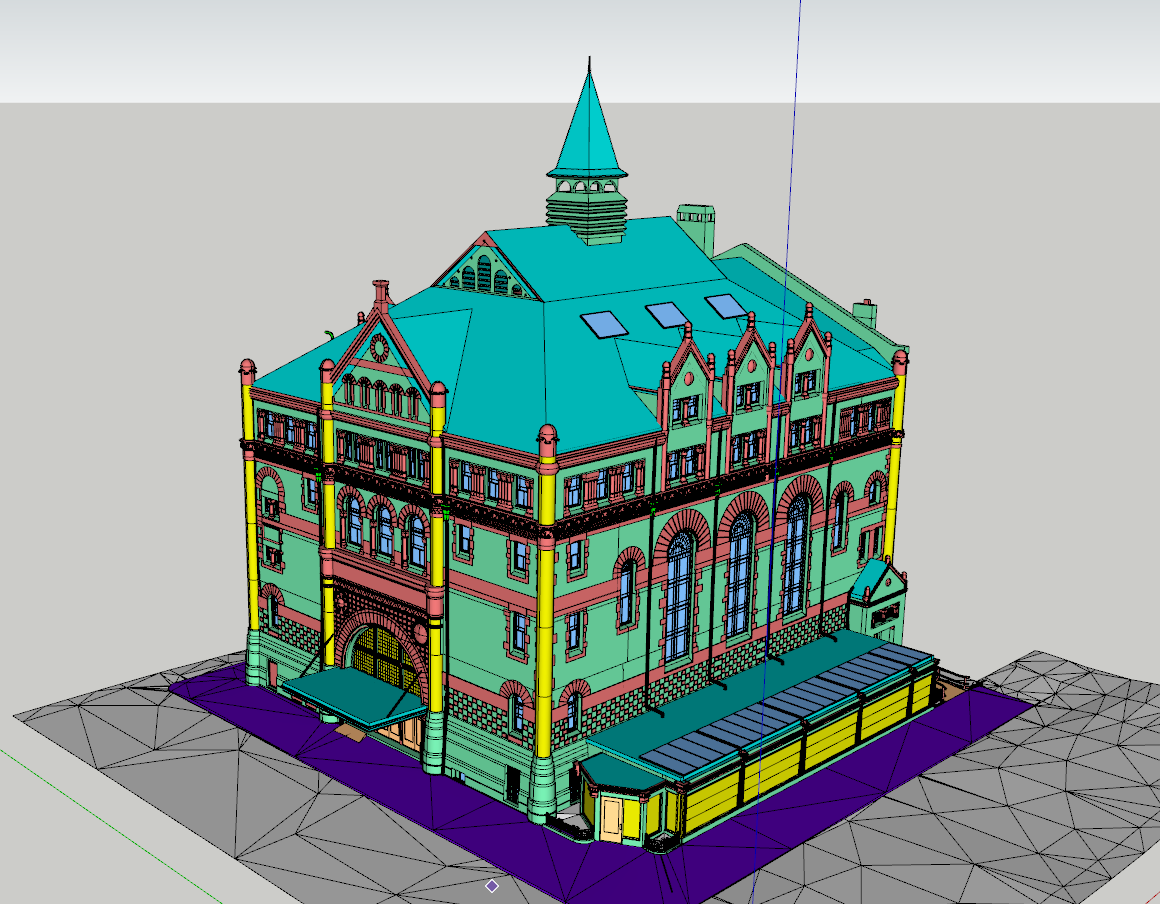

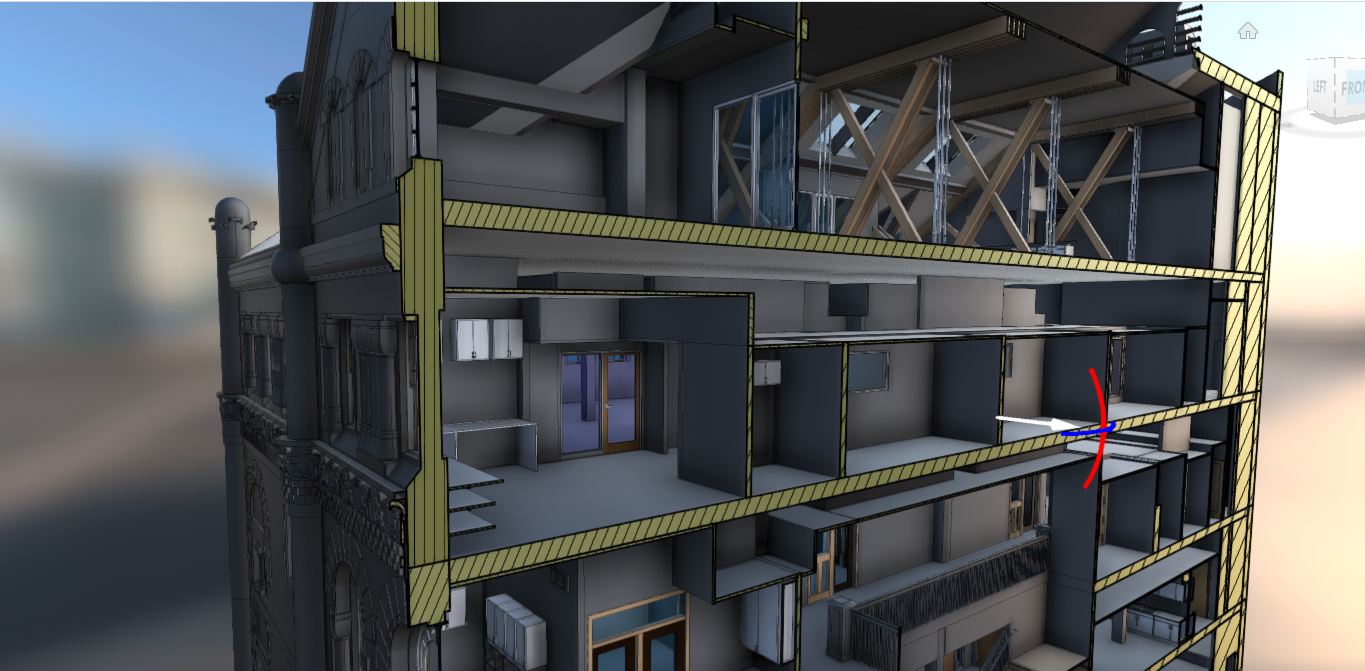

DELIVERABLE: Revit Model, 3D DWG, 2D DWG Plans and Elevations, SketchUp Model.
TECHNOLOGY: SLAM Laser Scanners, Tripod Mounted and Handheld Laser Range Finders. DJII Phantom Drone, ReCap, Revit, GeoSLAM, Cloud Compare. Pix4D, GoPro Max, GoProPlayer. Coffee
