LOCATION: Mammoth Street, Lowell MA
HISTORY: The Lowell Fire Department was established by the state legislature on February 6, 1830. As Lowell began its climb as a center of industrial power, fire protection evolved from the days of the United Fire Society's bucket brigades to organized volunteer fire companies and a full-time paid department.
SCOPE: 3D Capture & Document the entire building, include hose tower and exterior details.

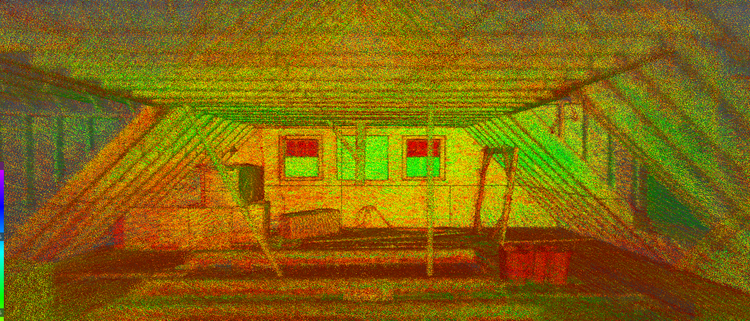

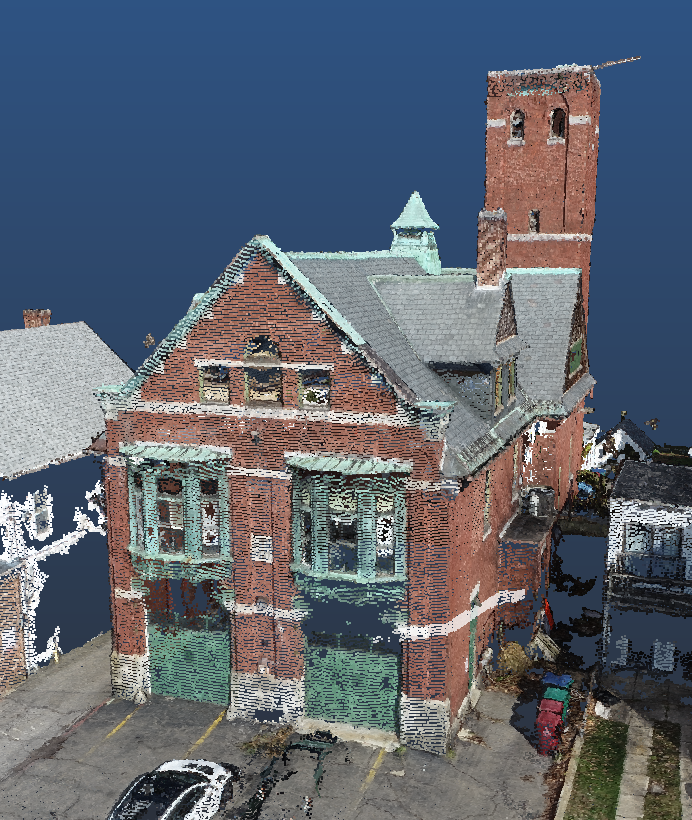

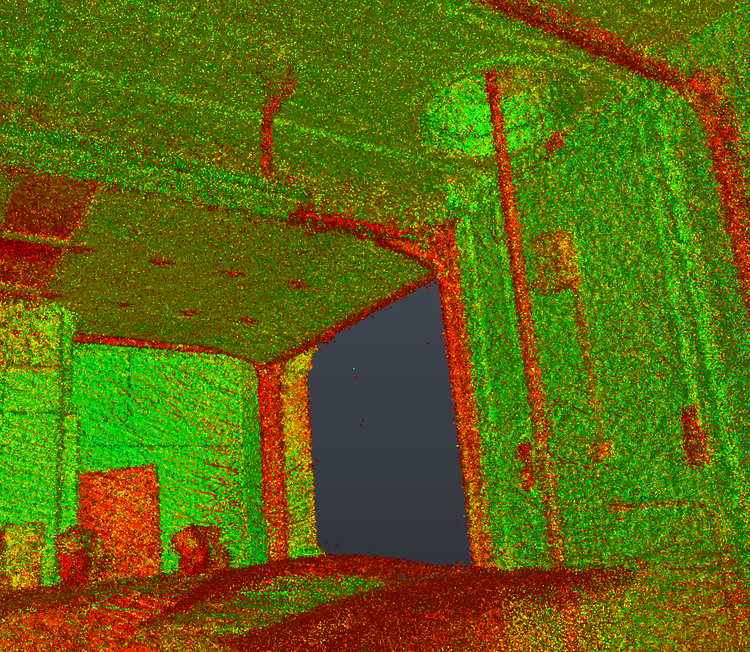

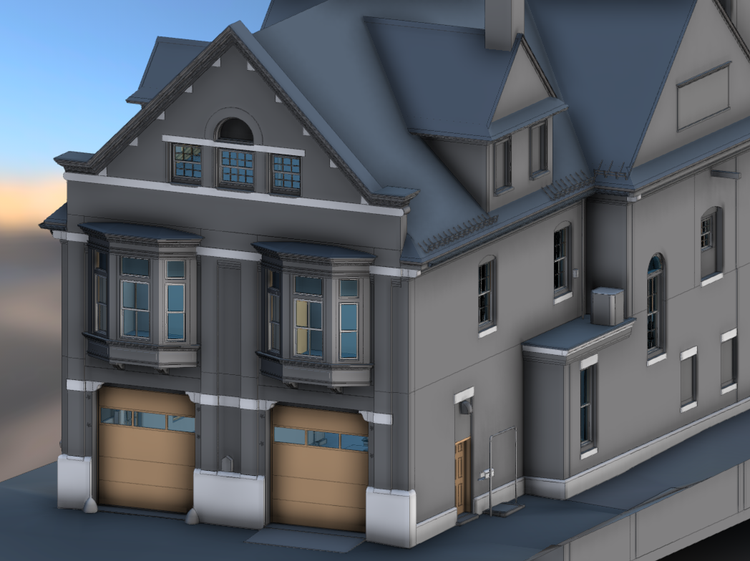

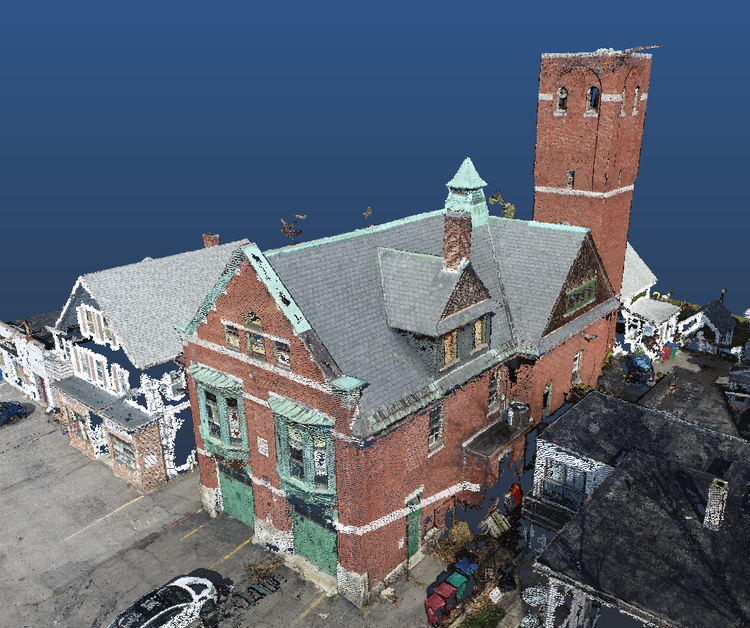

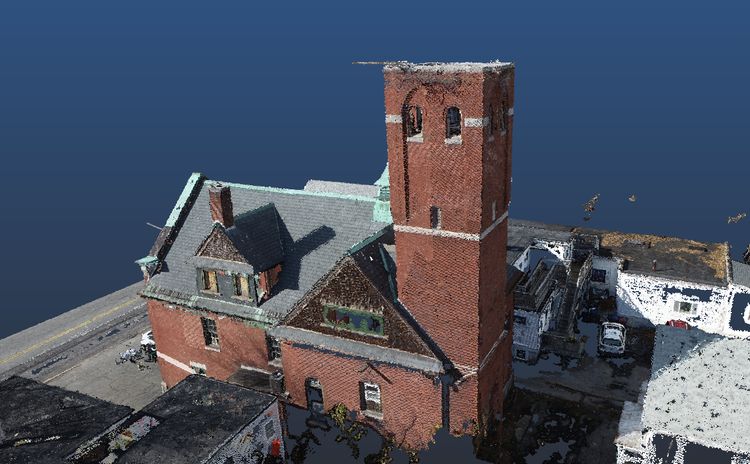

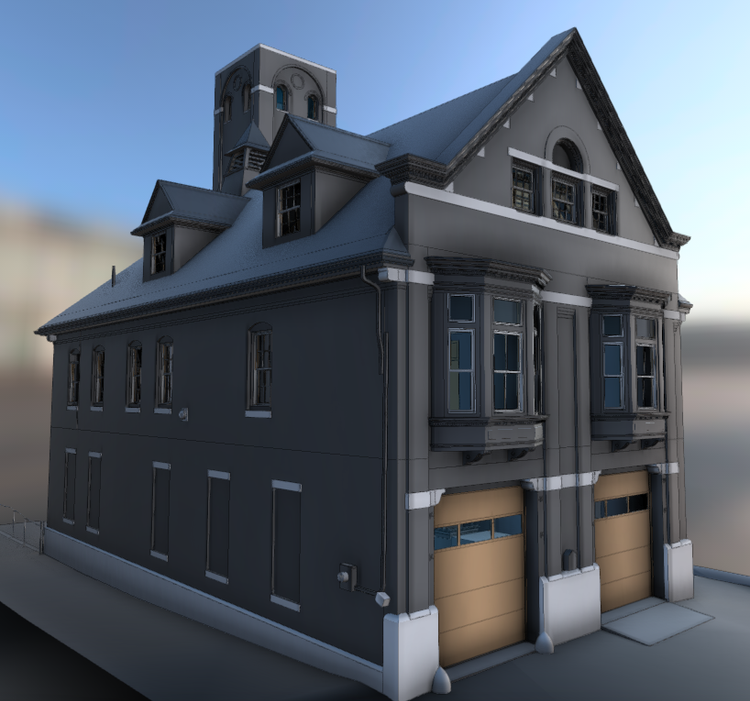

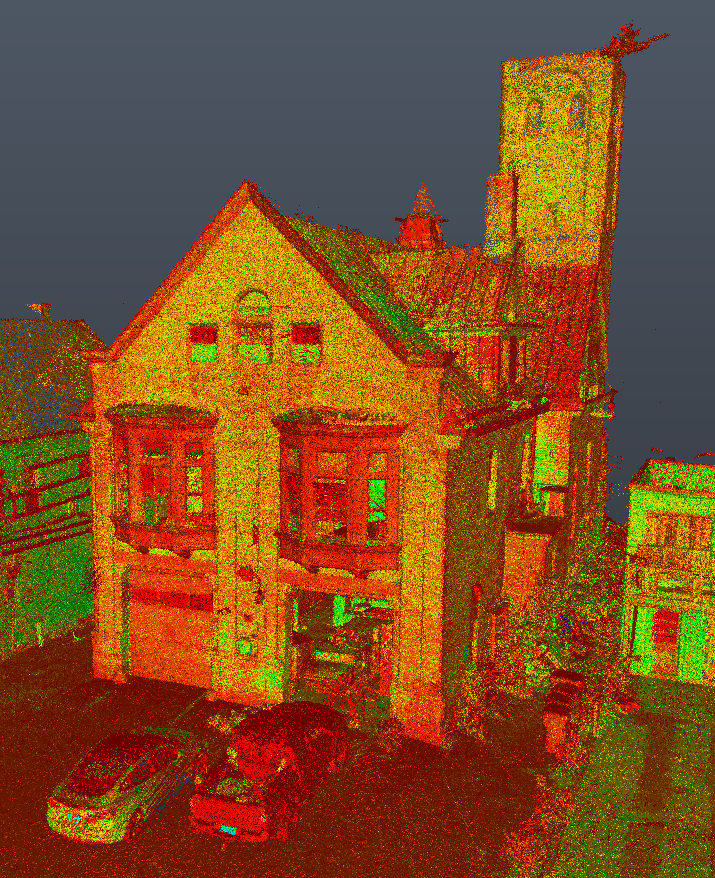

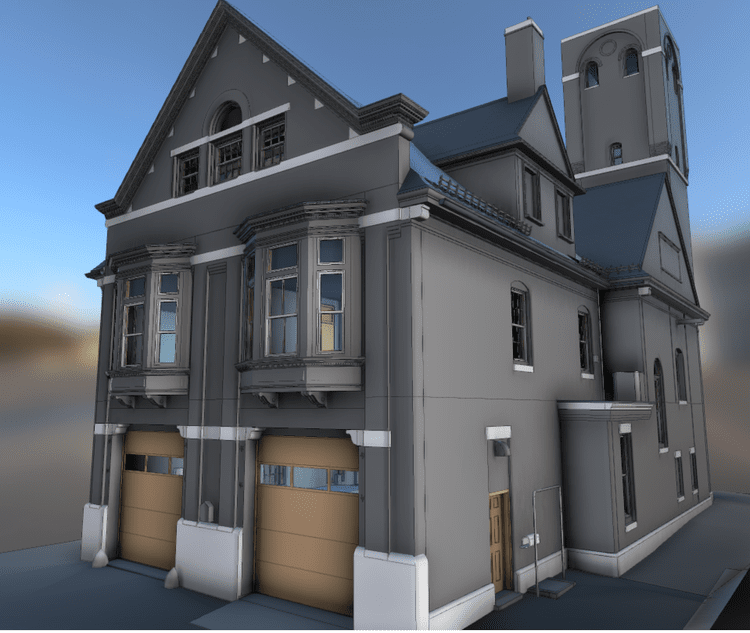

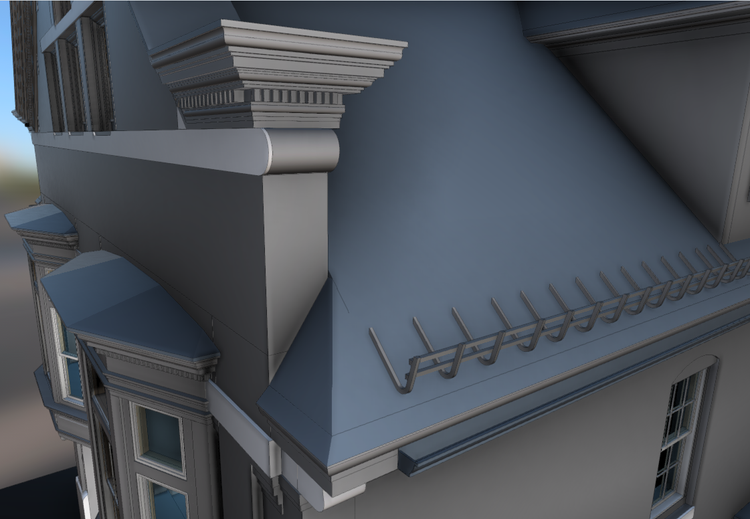

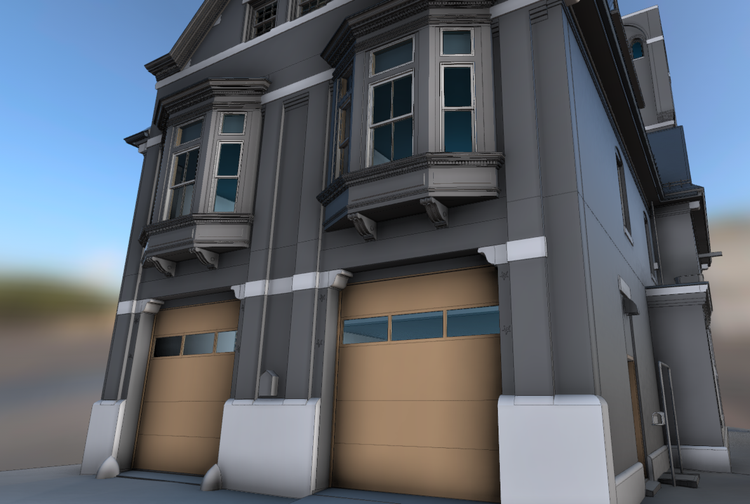

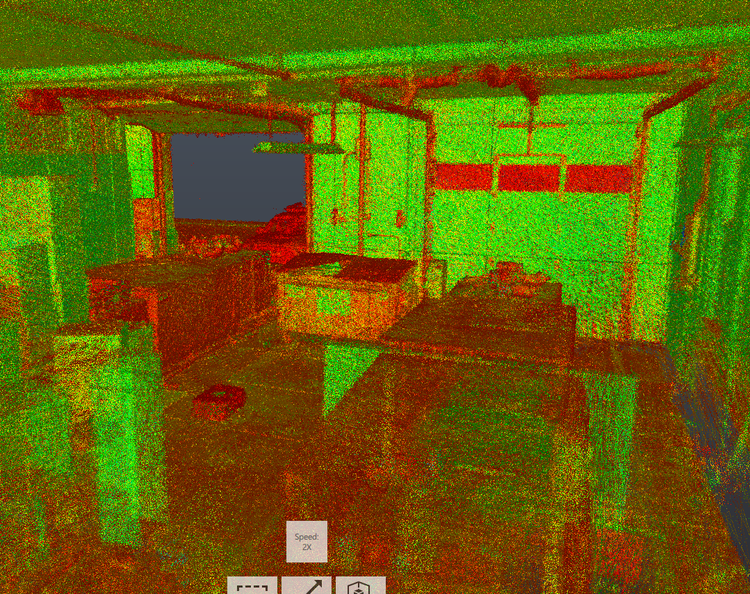

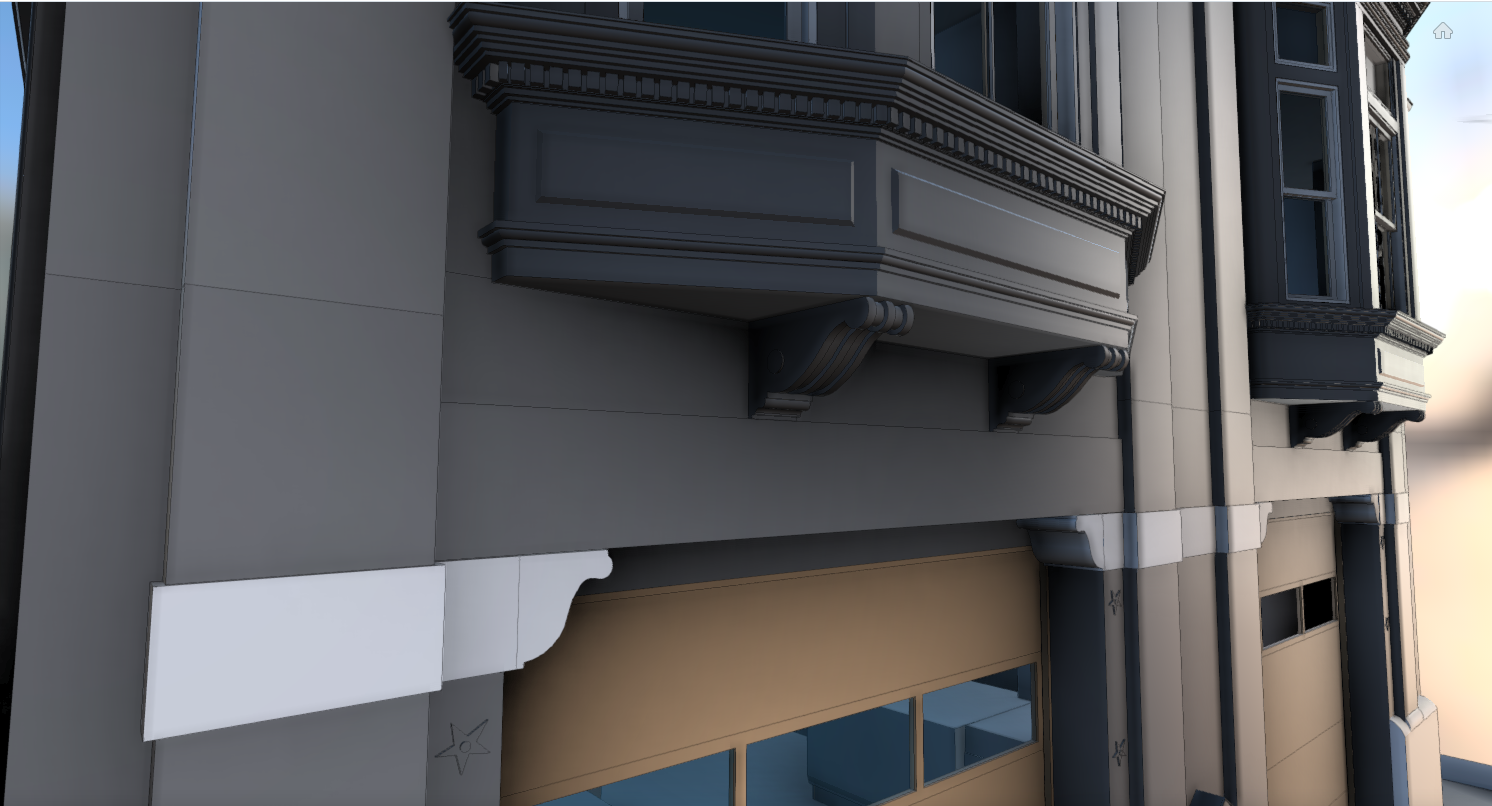

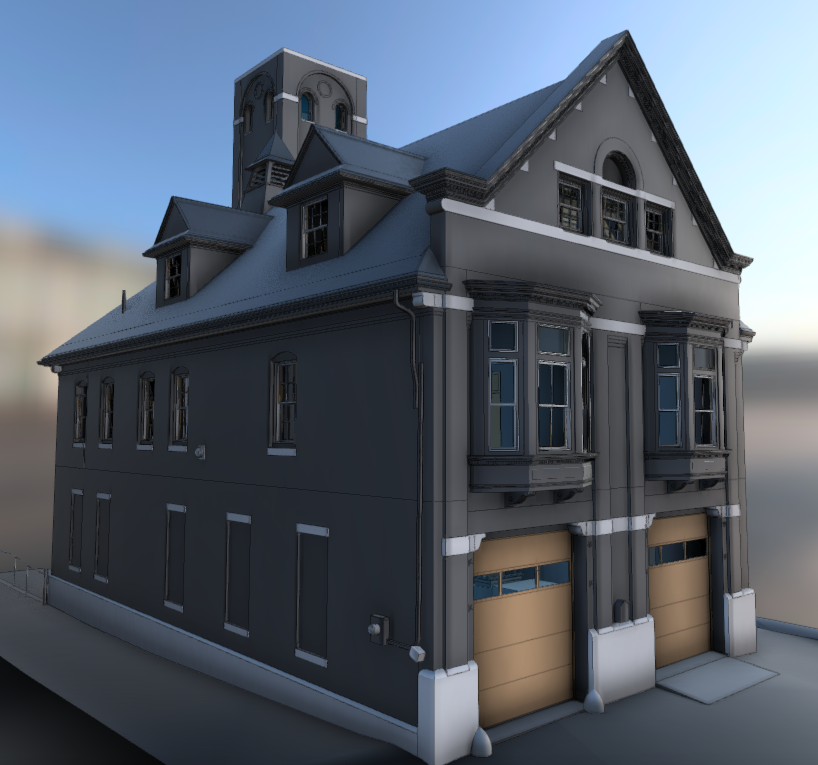

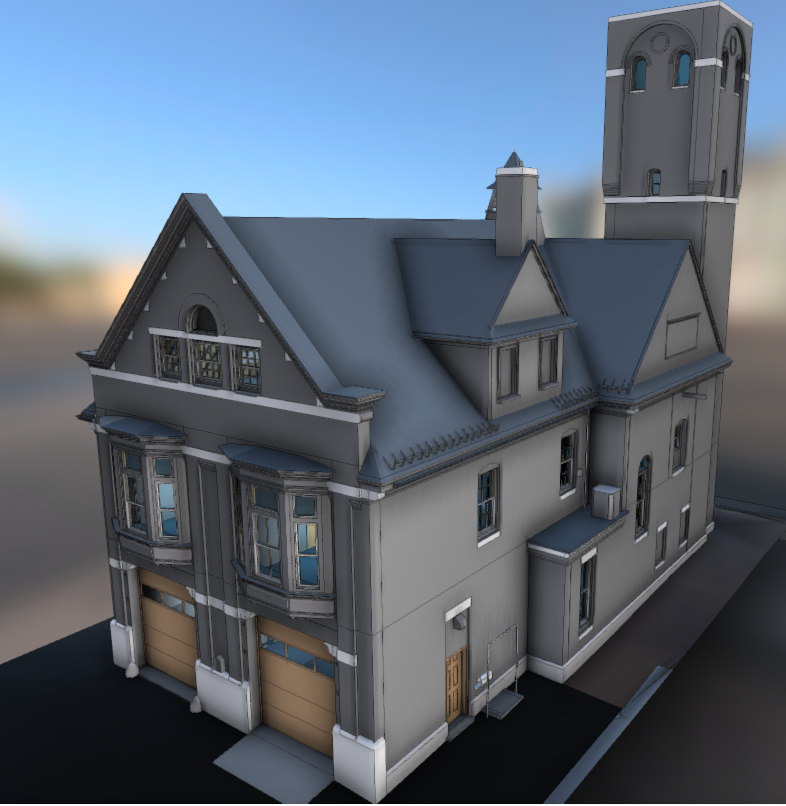

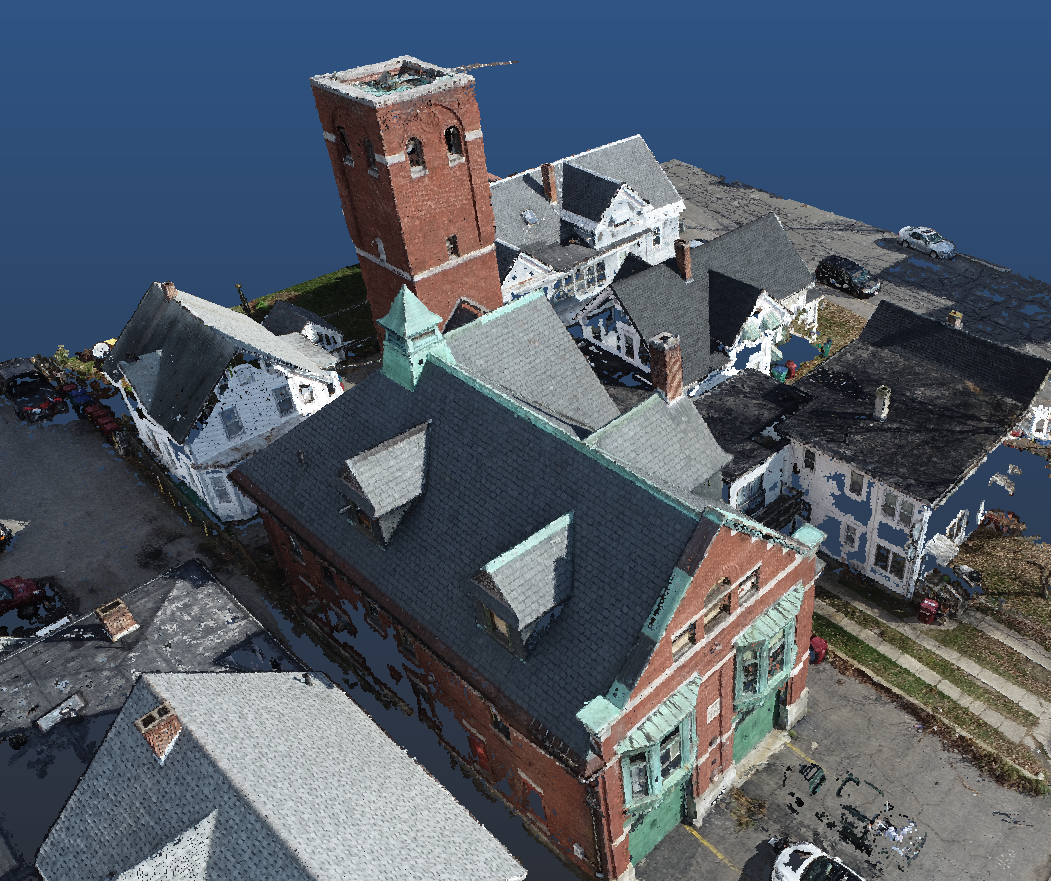

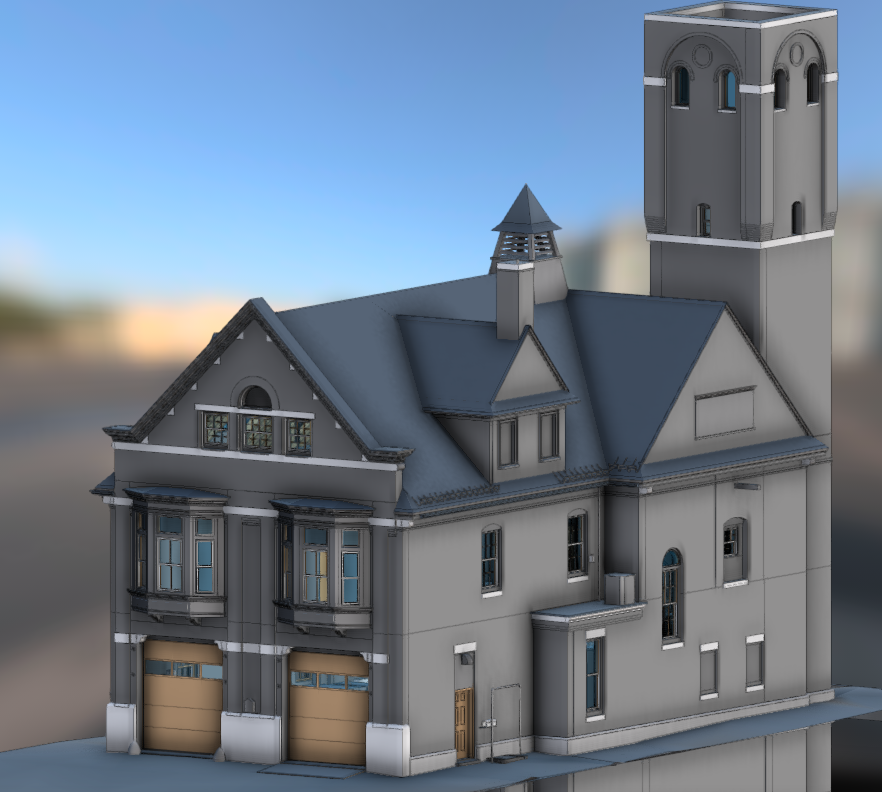

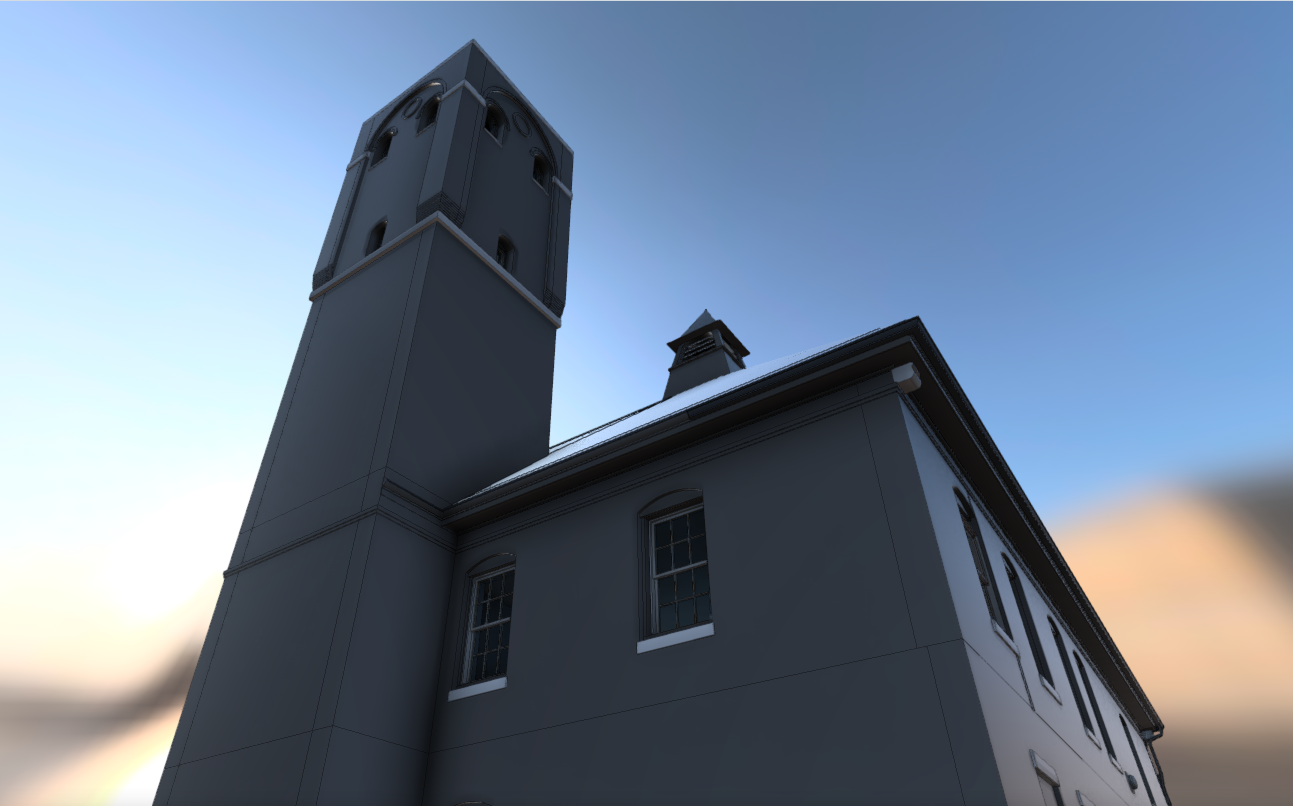

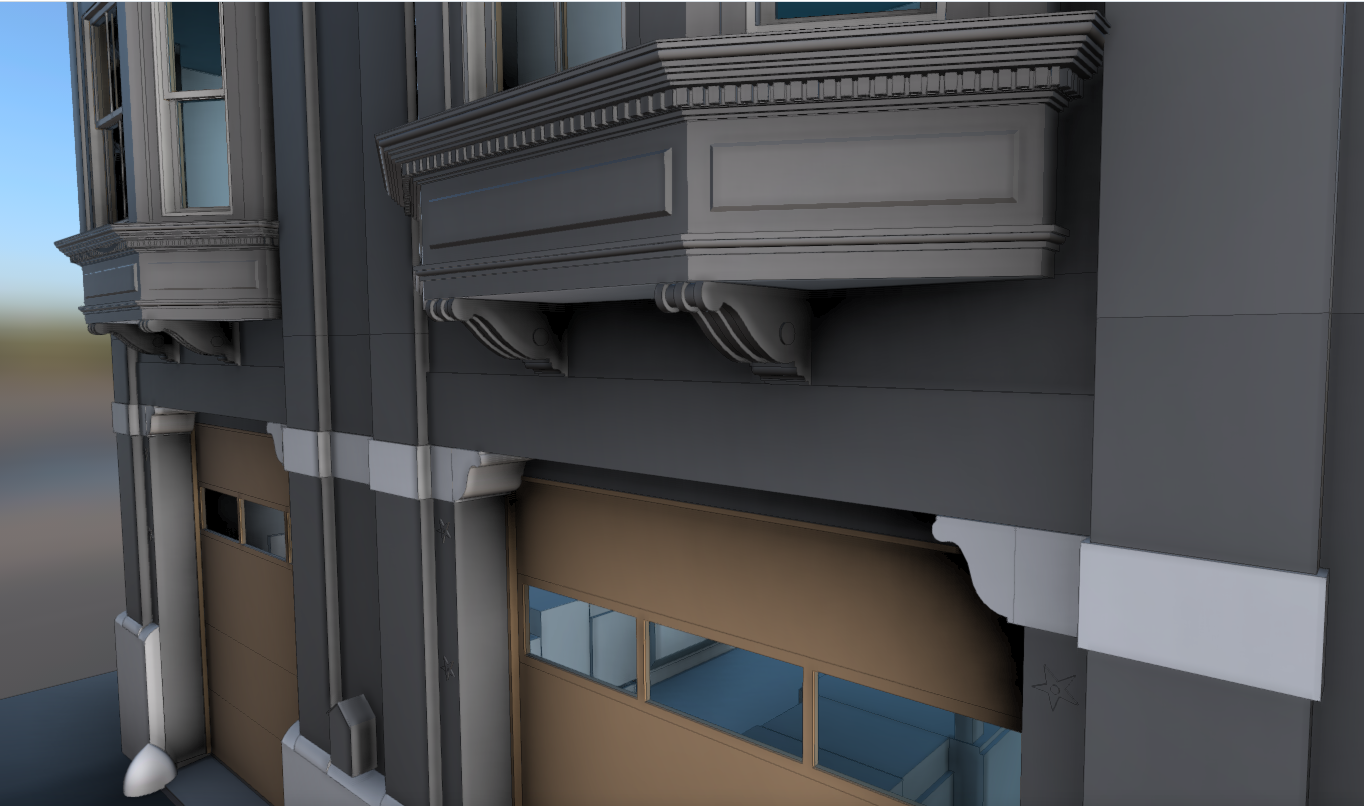

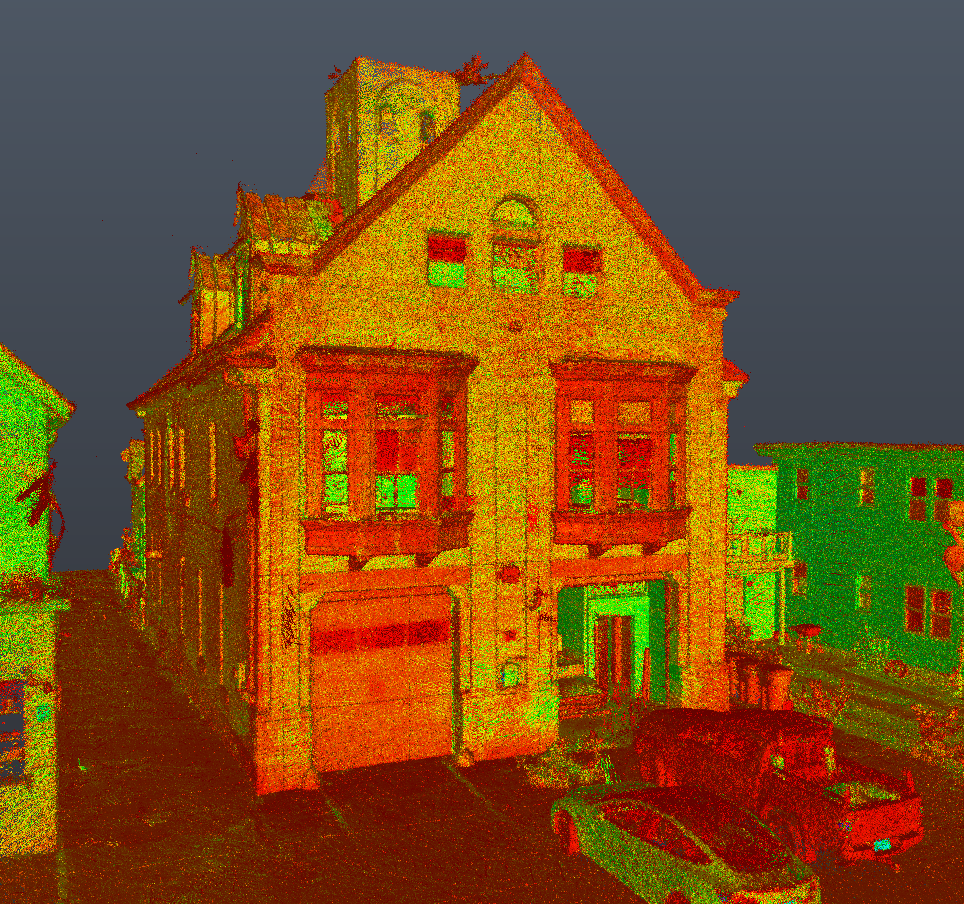

PROCESS: Schedule and coordinate survey work. Create SLAM cloud of property. Capture 360 Video and Photos. Create control measurements across property. Fly drone convert imagery to 3D LAS Data. Register data to each other. Convert all data to Recap .Utilize data to model entire building Revit and export multiple views and models for use in other platforms.

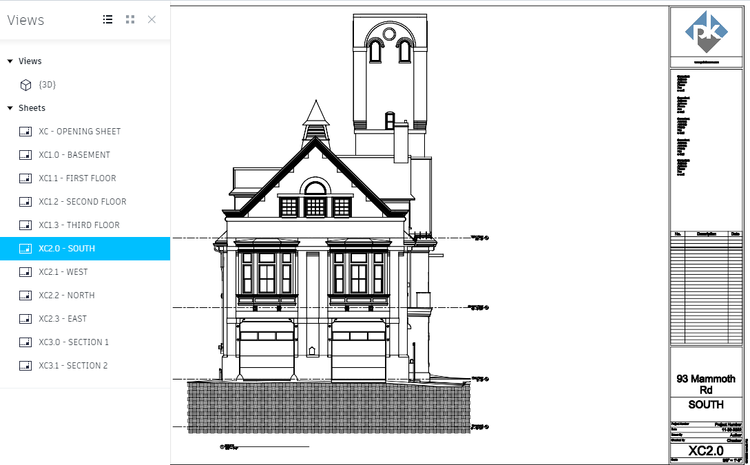

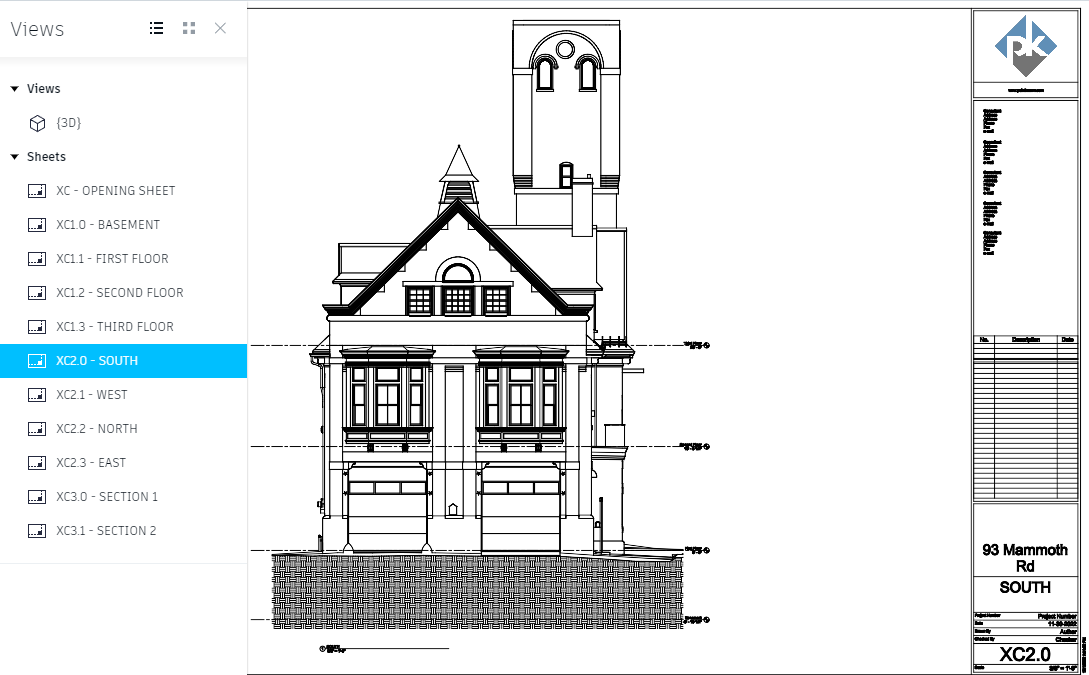

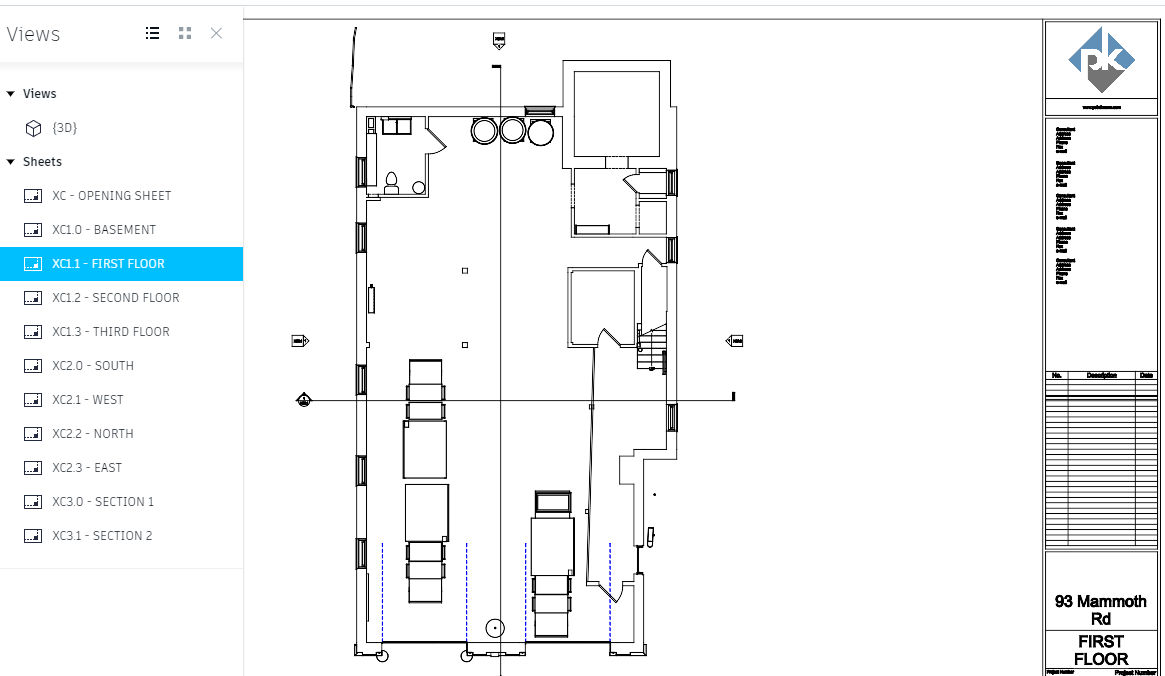

DELIVERABLE: Revit Model, Format and Plot Paper Space
TECHNOLOGY: SLAM Laser Scanners, Tripod Mounted and Handheld Laser Range Finders. DJII Phantom Drone, ReCap, Revit, GeoSLAM, Cloud Compare. Pix4D, GoPro Max, GoProPlayer. The enthusiasm of a 10 year old.
