Cushing Academy

LOCATION: Ashburnham, Massachusetts

3D Model : Here

This dorm was built in 1915. It has 34 rooms, three faculty apartments, one laundry room, and a lounge renovated in the summer of 2014. It is also attached to the Fisher-Watkins Dining Commons and the Joseph Treadwell Student Center

SCOPE: 3D Capture & Document Existing Building.

PROCESS: Create multiple high definition scans of exterior, register to create complete shell. Create SLAM cloud of entire interior as well high def scans of select spaces. Register clouds to each other to create unified multi source cloud of entire building.

Utilize data to model entire building Revit

TECHNOLOGY:  HDLS, SLAM, Tripod Mounted and Handheld Laser Range Finders. ReCap, Revit, SCENE, GeoSLAM.

Ashburnham House (2).JPG

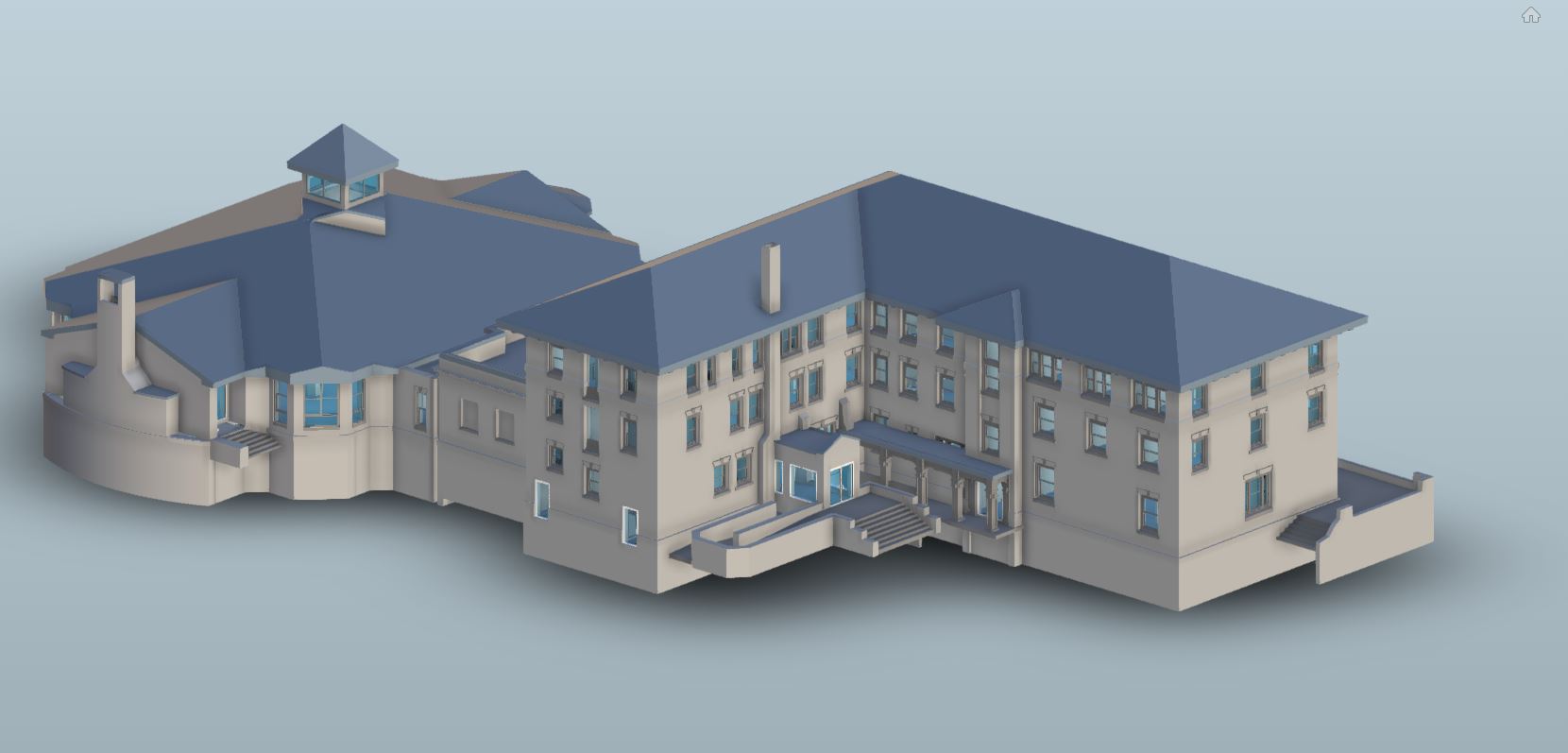

Ashburnham House 1.JPG

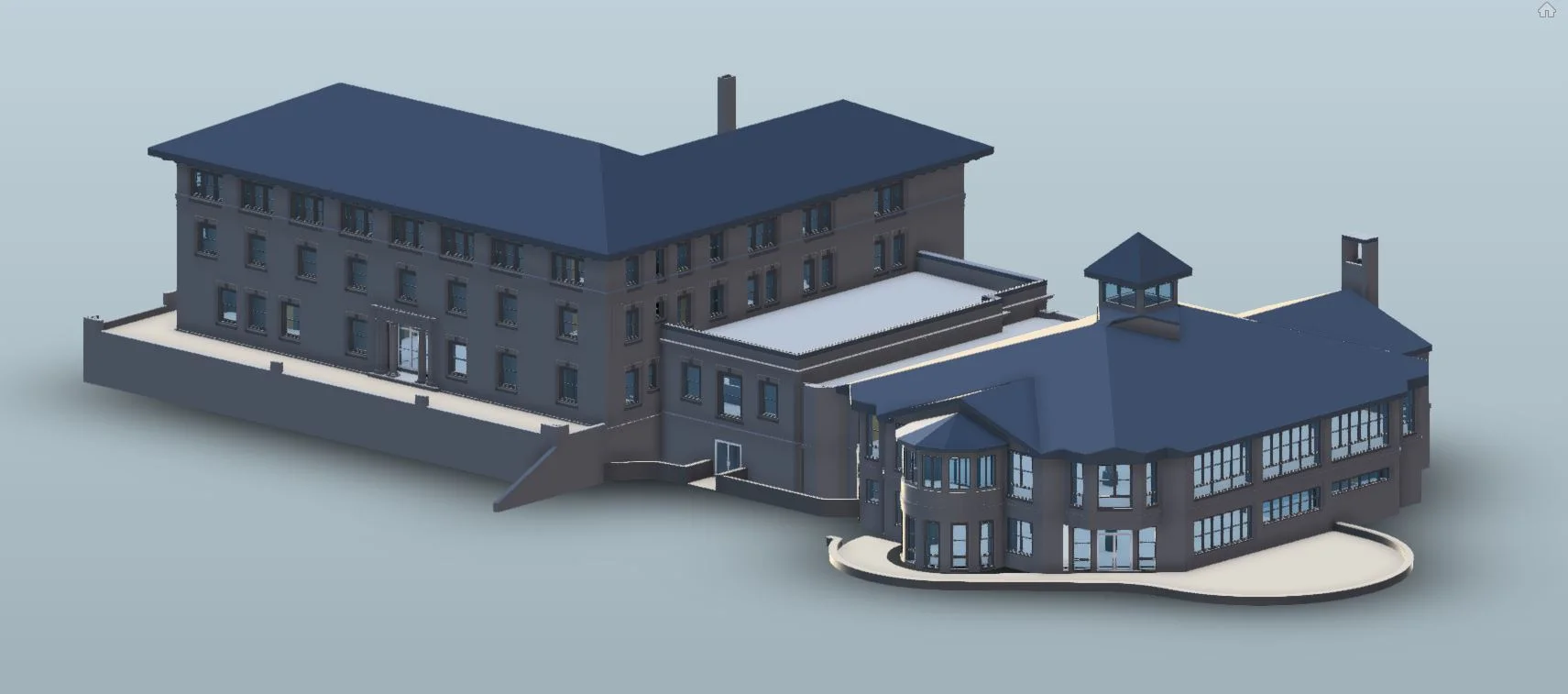

Ashburnham House 2.JPG

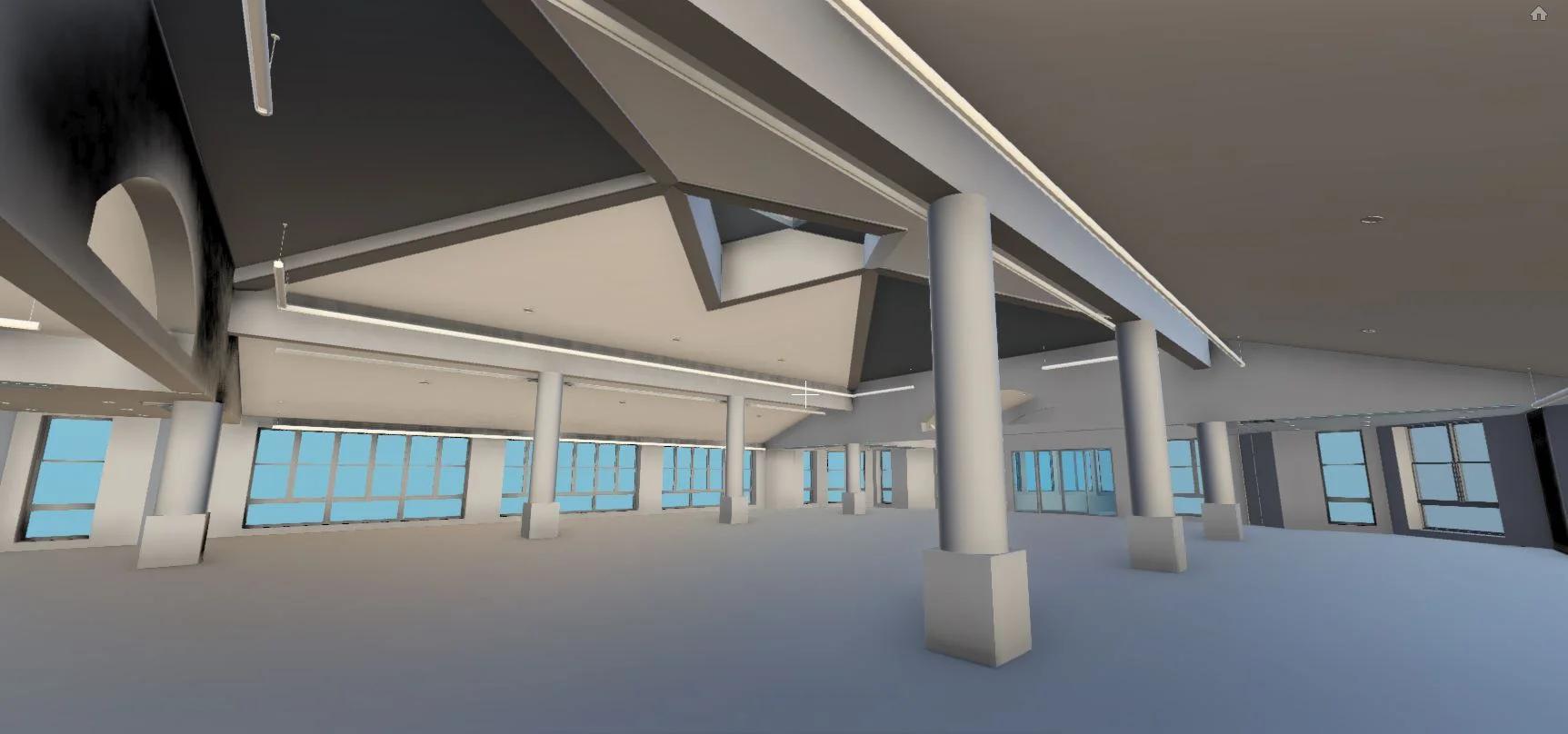

Ashburnham House 3.JPG

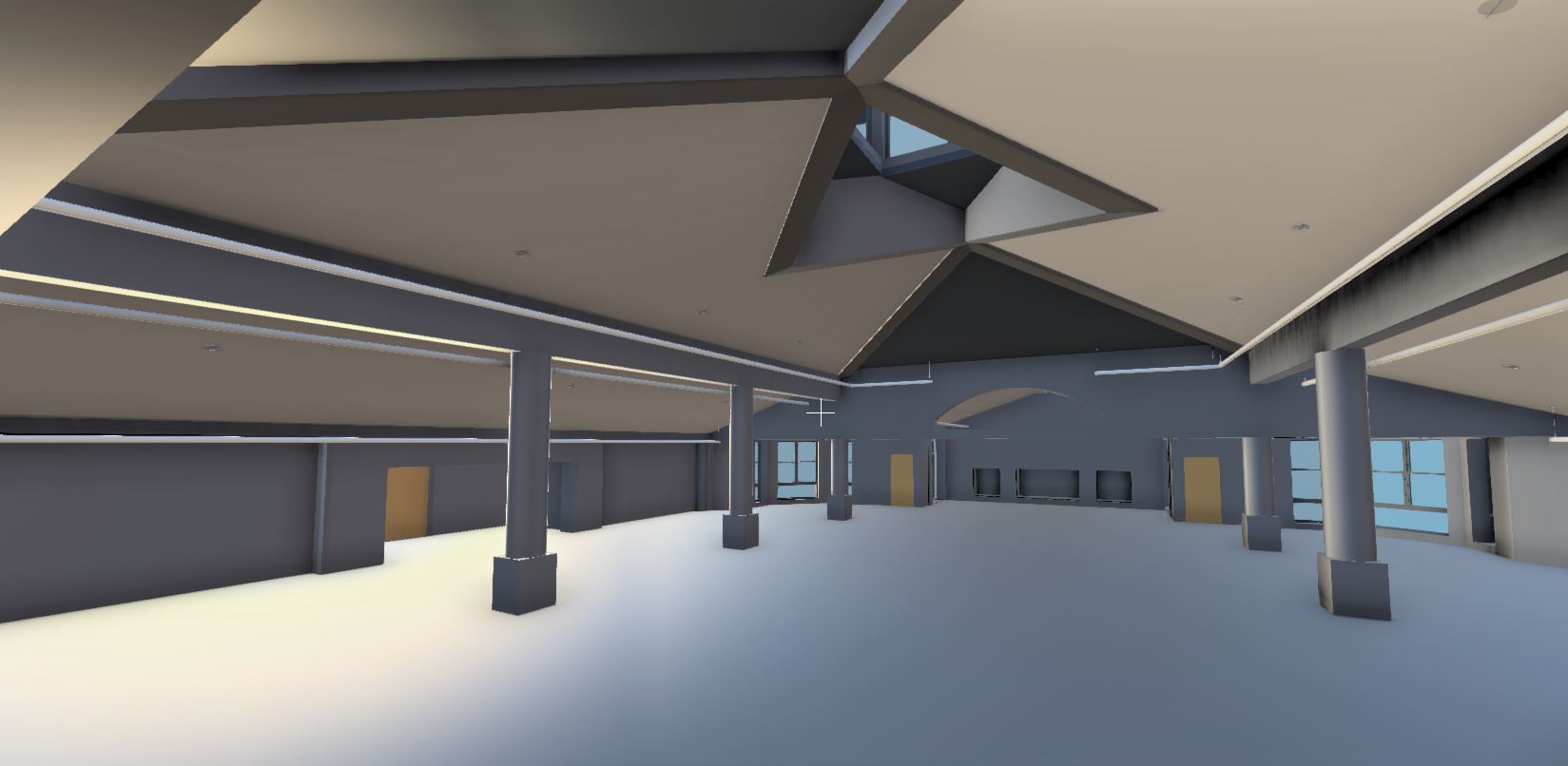

Ashburnham House 4.JPG
