LOCATION: Beacon Street, Boston MA

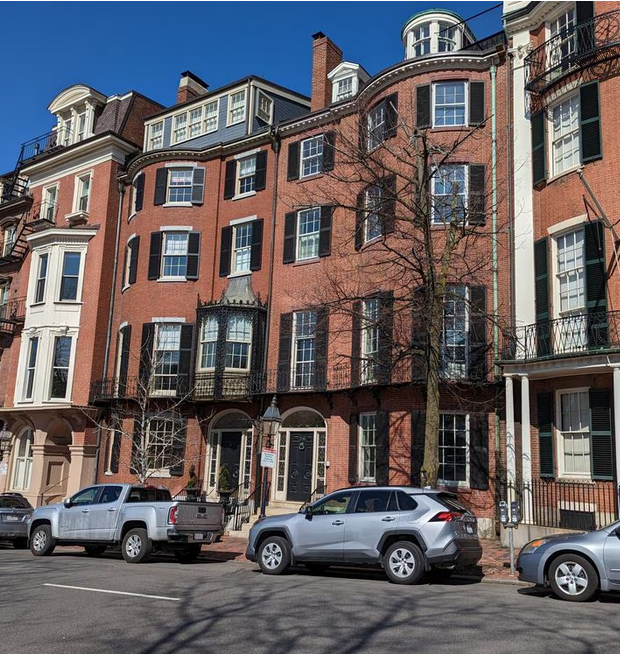

HOME: Over 10,000 SF of livable space not including outdoor living areas, 4 car garage and Roof Deck over looking Boston Common. Mahogany paneled rooms, custom mantles over multiple fireplaces. Wrought Iron work and custom detailing.
SCOPE: 3D Capture & Document the entire building and include all exterior details.

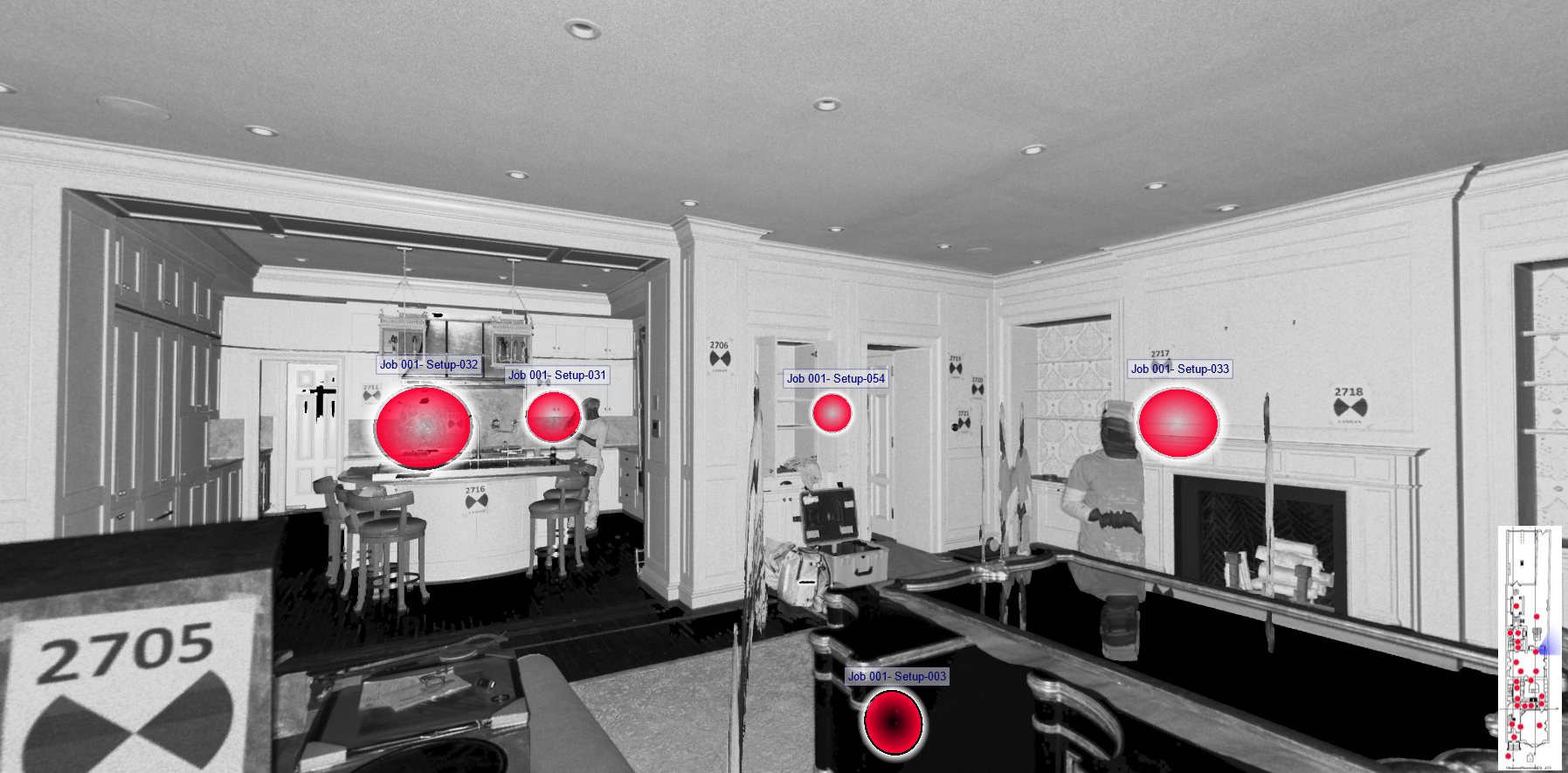

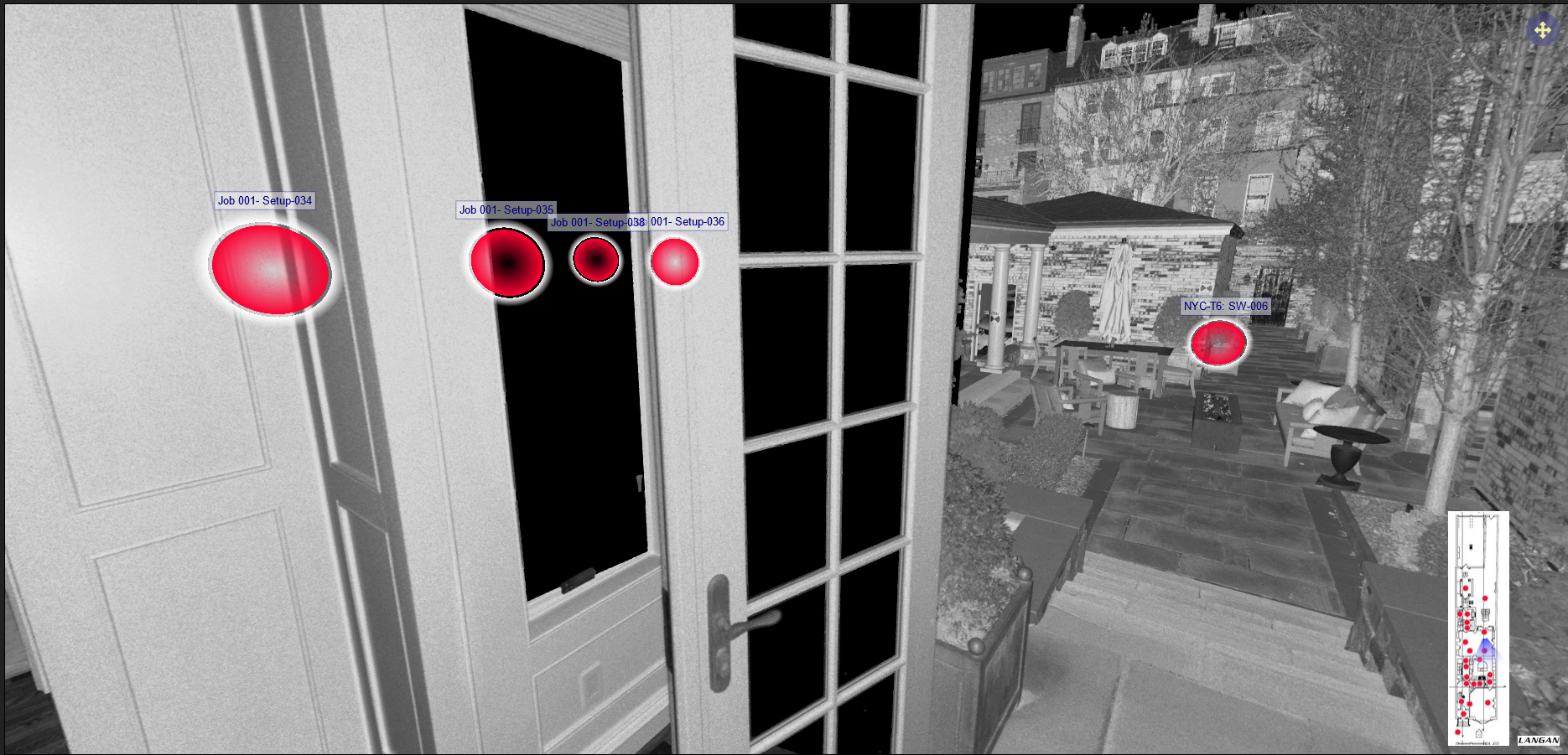

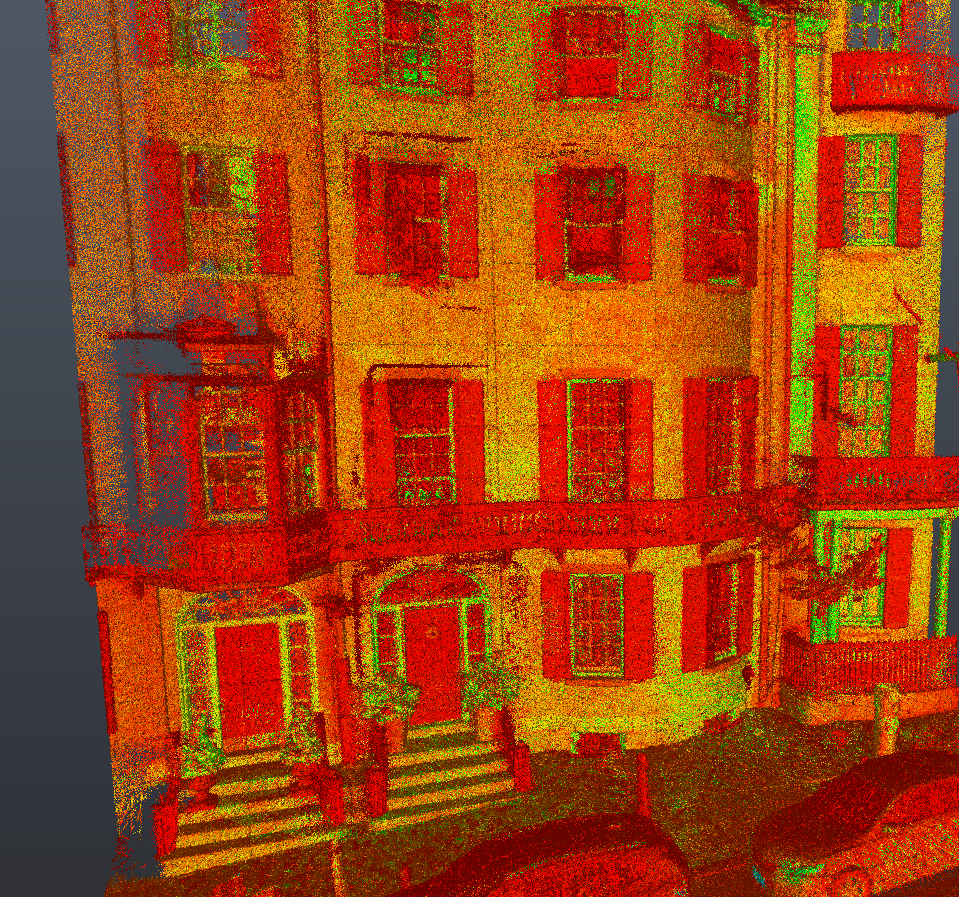

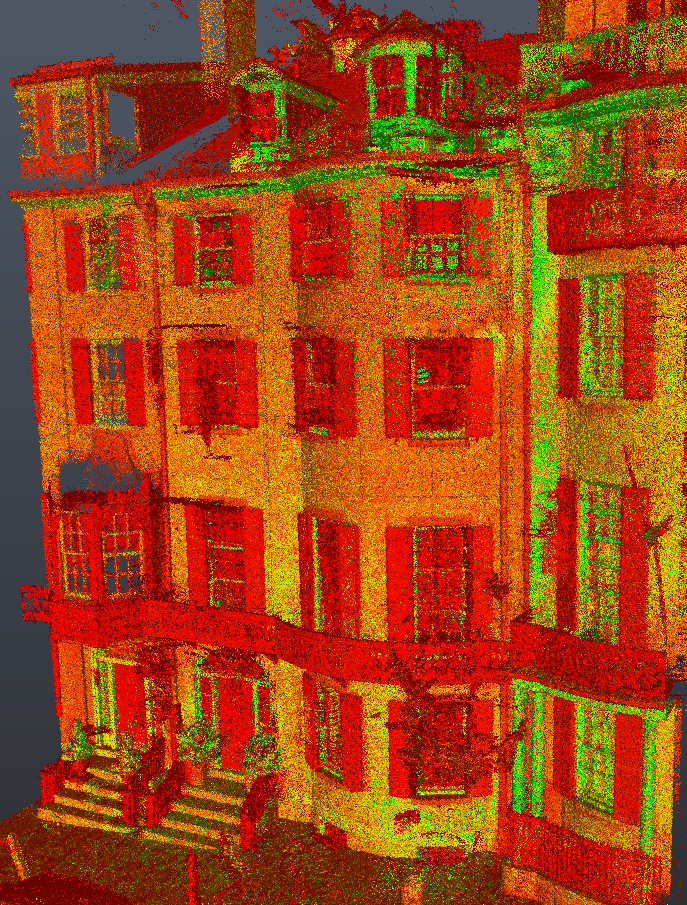

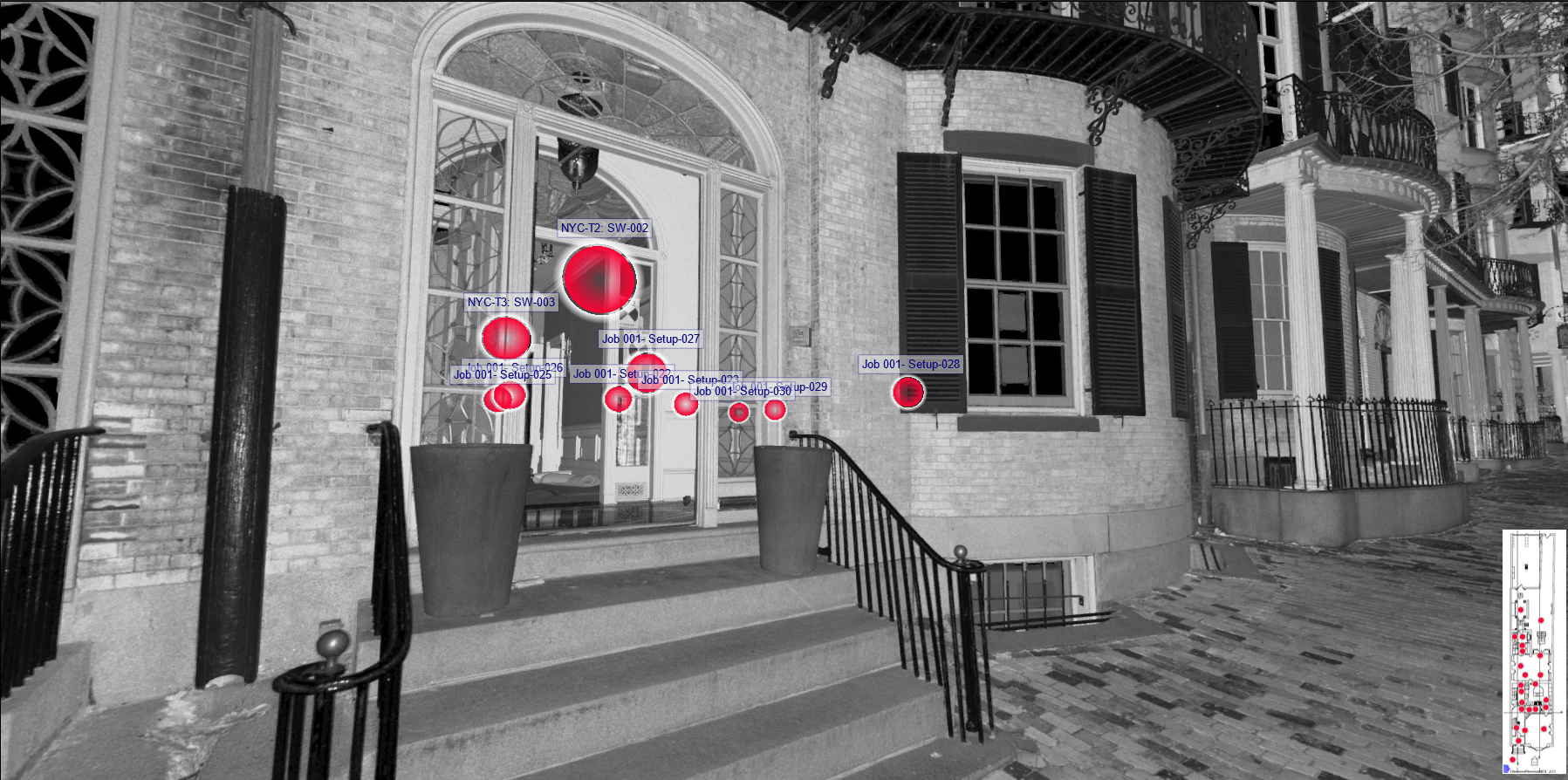

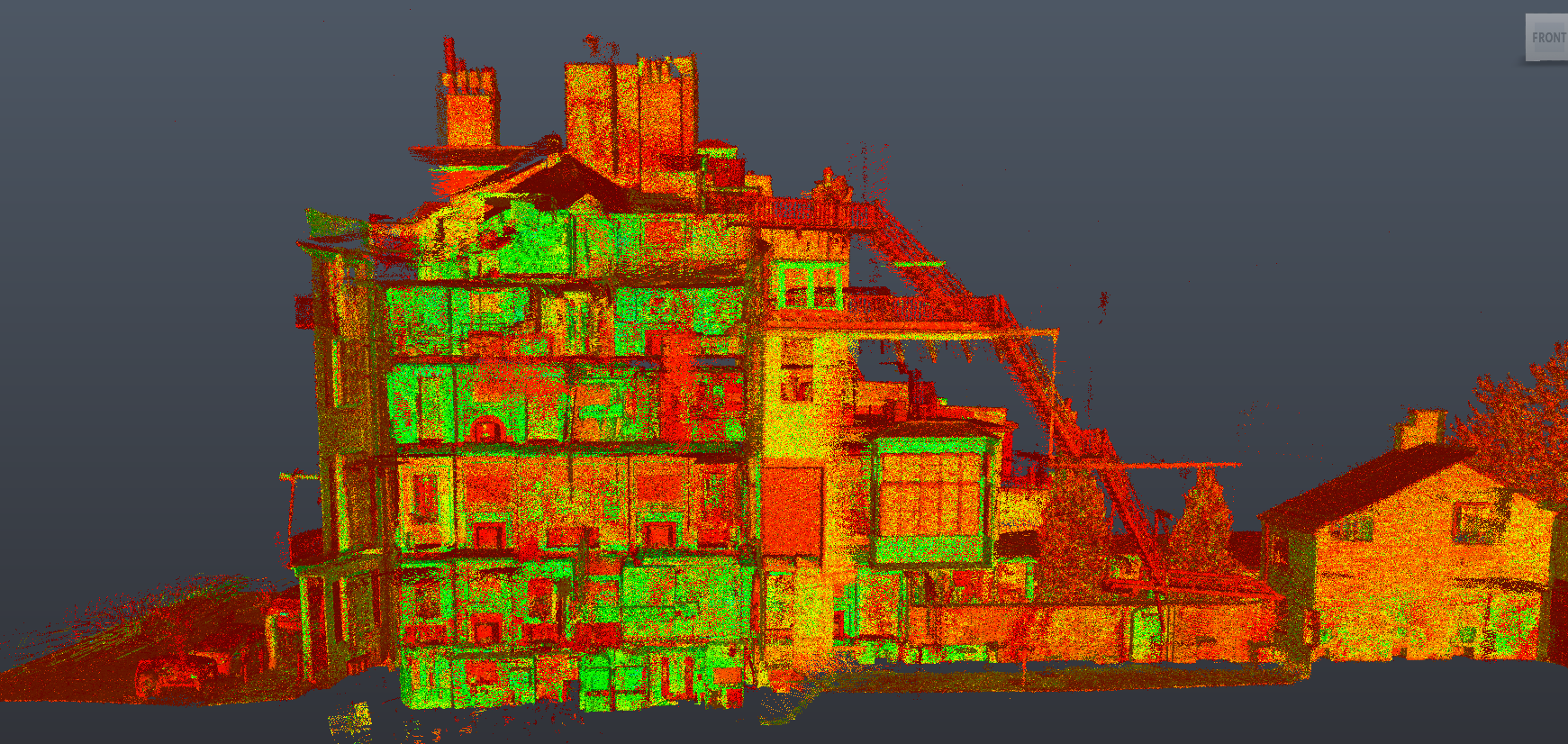

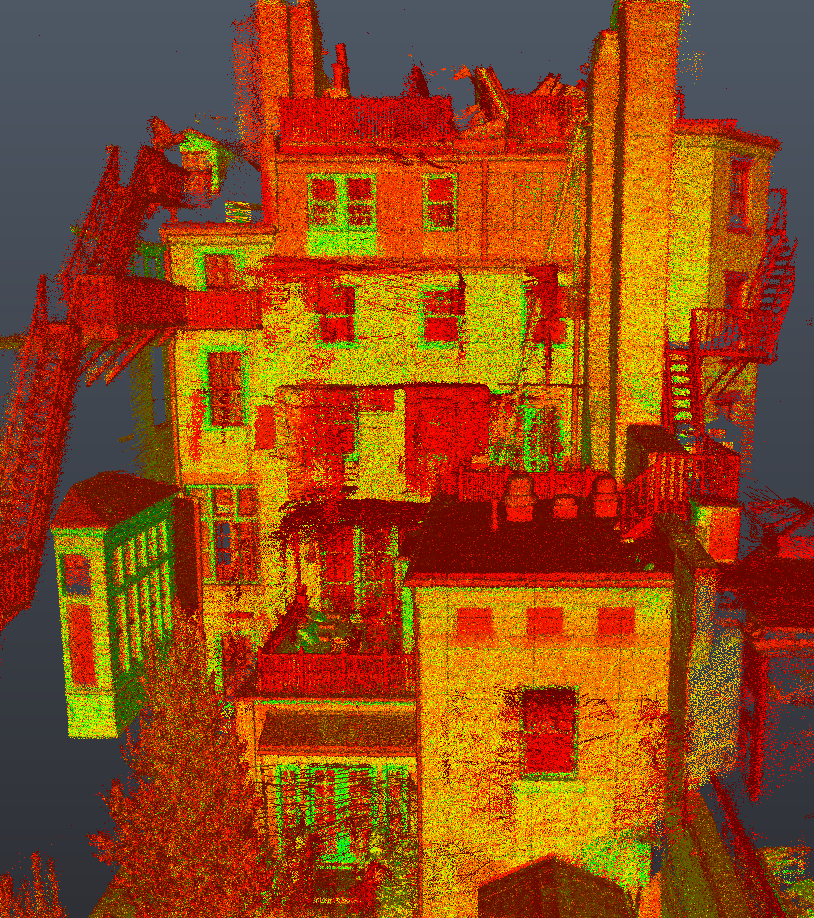

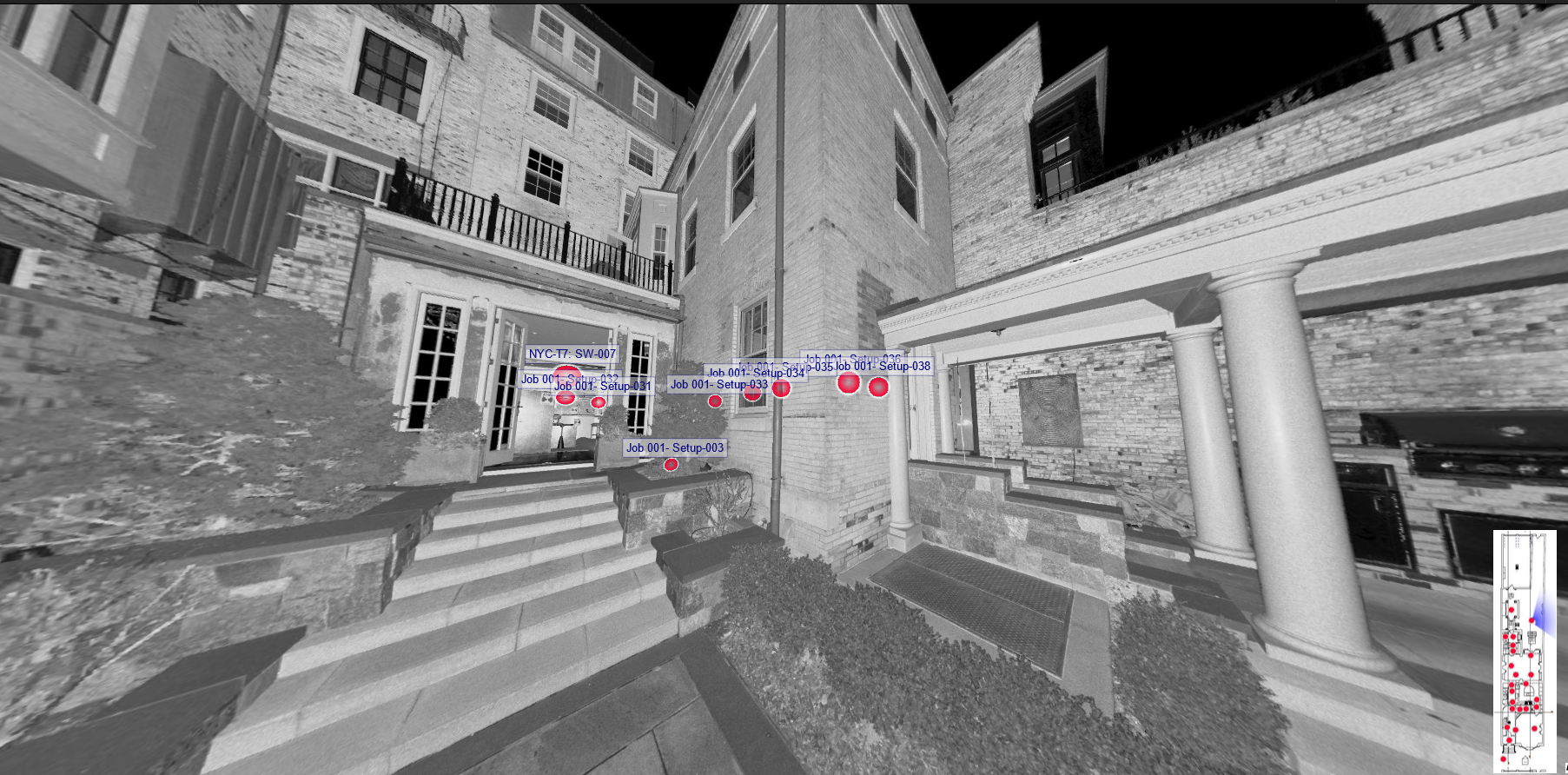

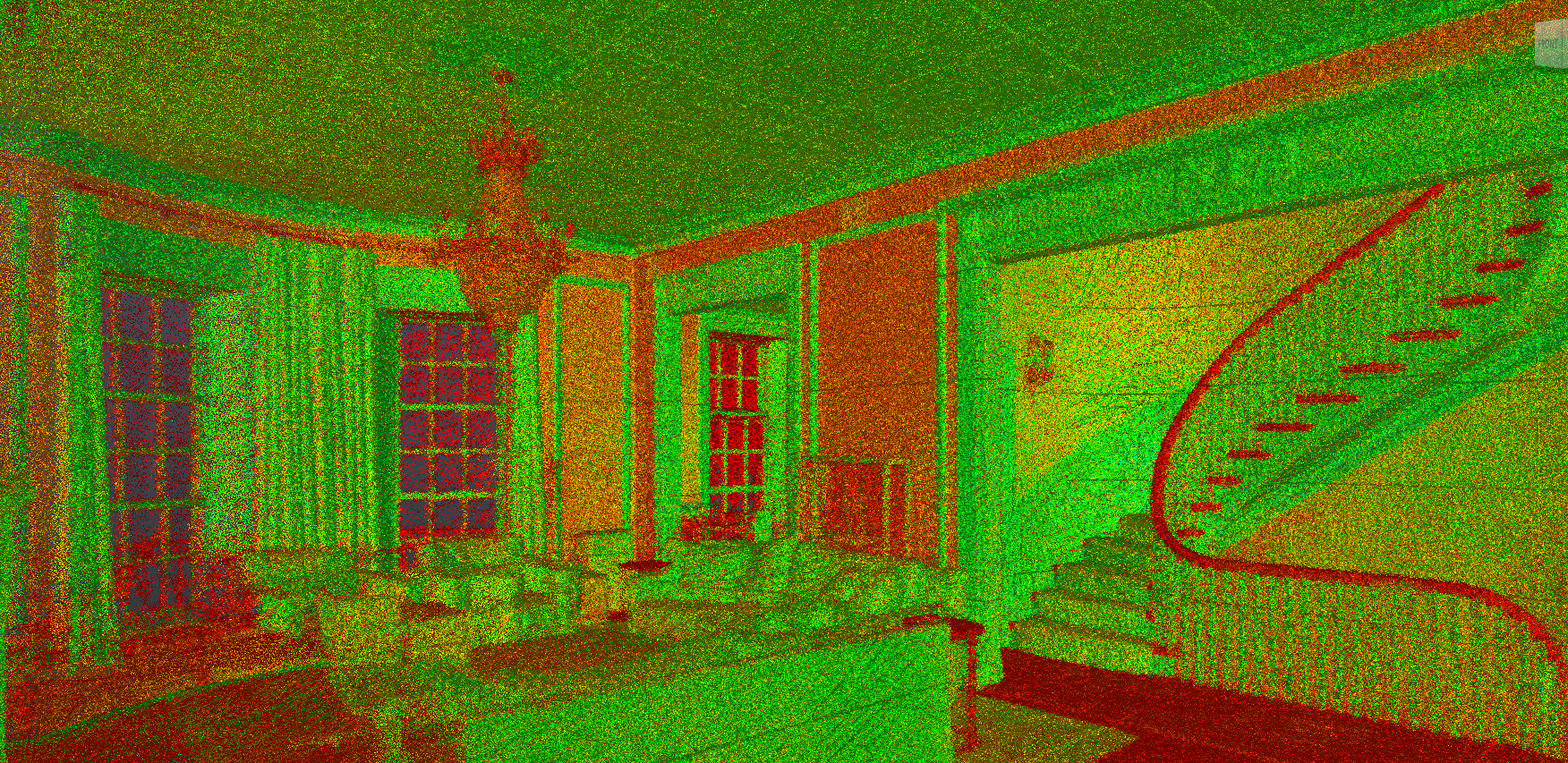

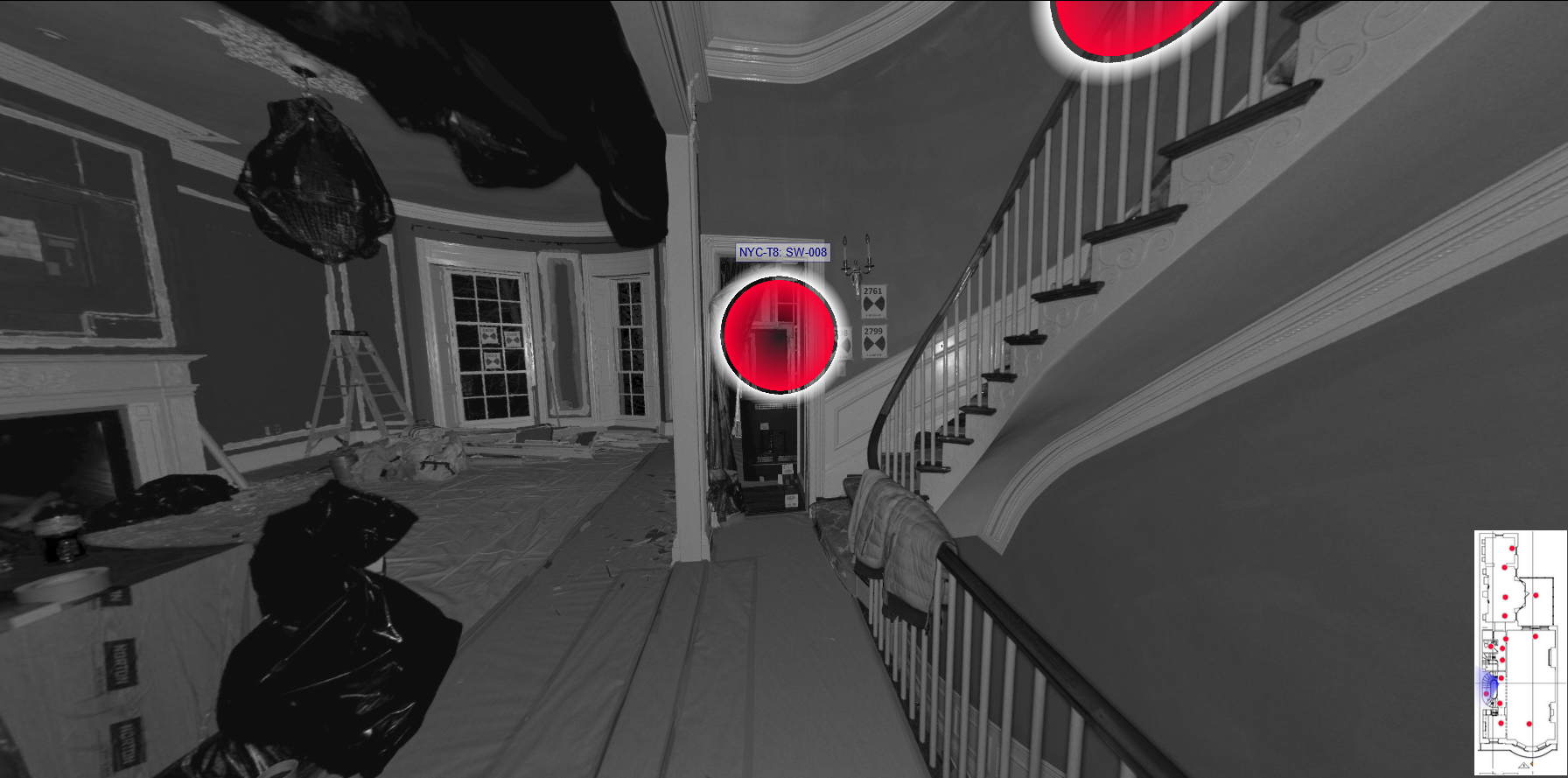

PROCESS: Schedule and coordinate survey work. Create SLAM cloud of property. Capture 360 Video and Photos. Create control measurements across property. Fly drone convert imagery to 3D LAS Data. Coordinate secondary scanning visit with terrestrial scanners to refine accuracy of cloud data.

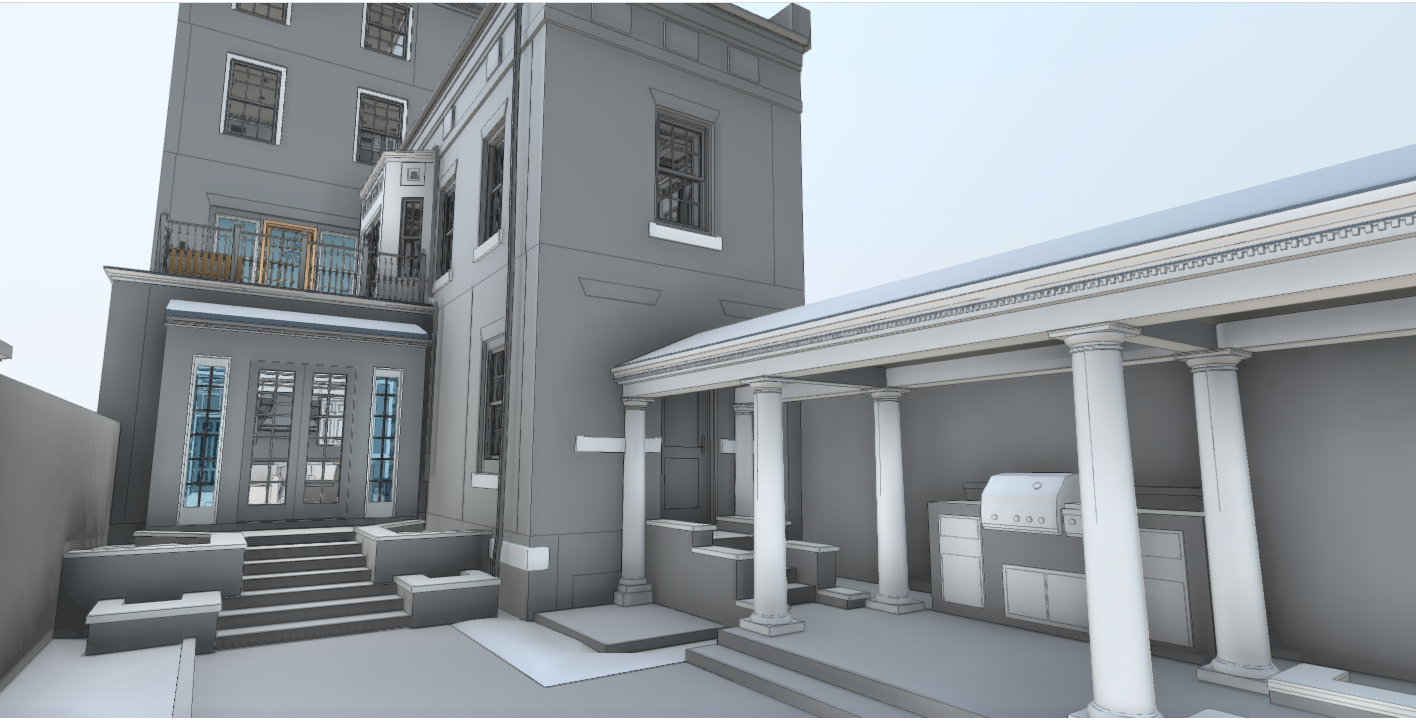

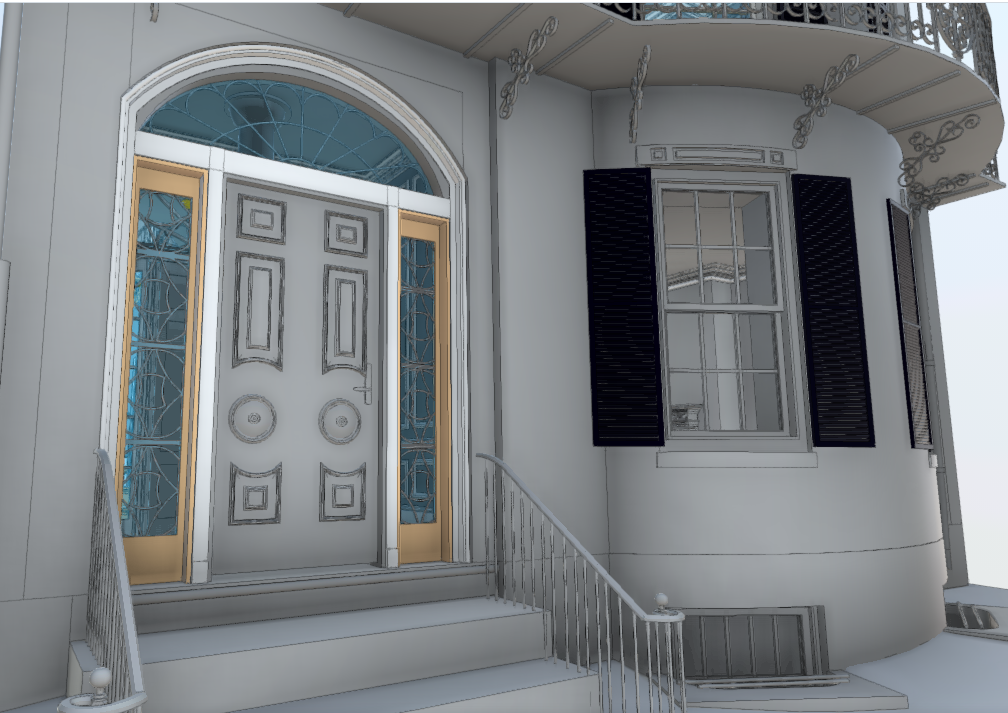

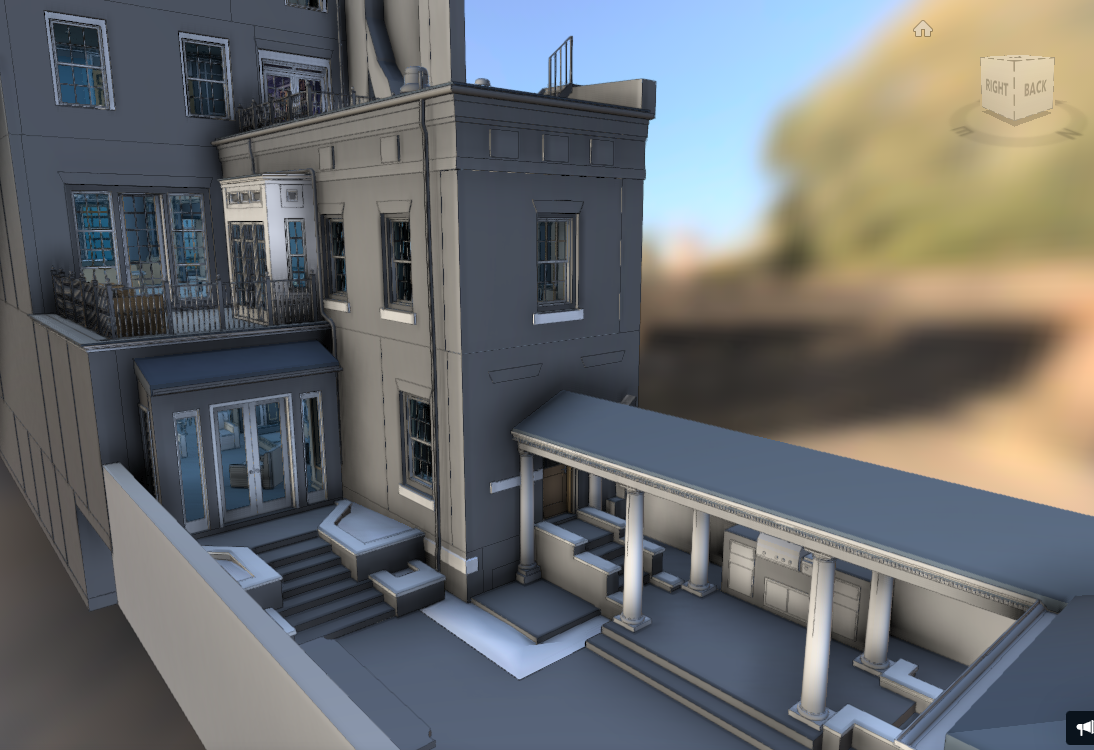

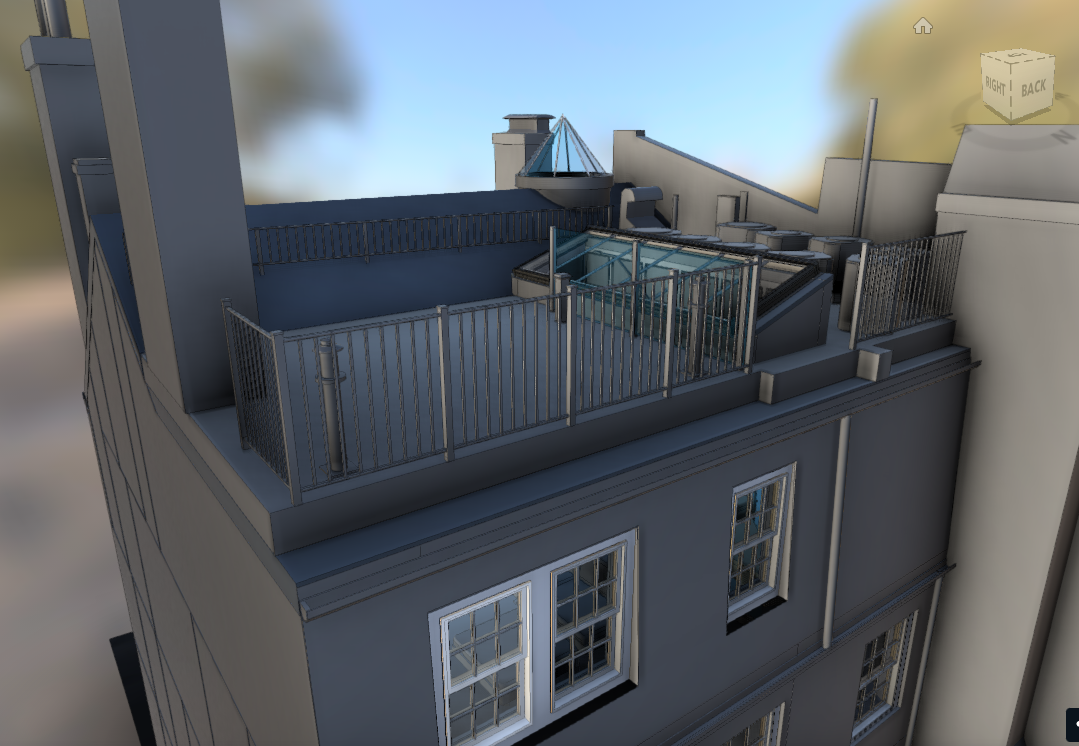

Register data to each other. Convert all data to Recap .Utilize data to model entire building Revit and export multiple views and models for use in other platforms.

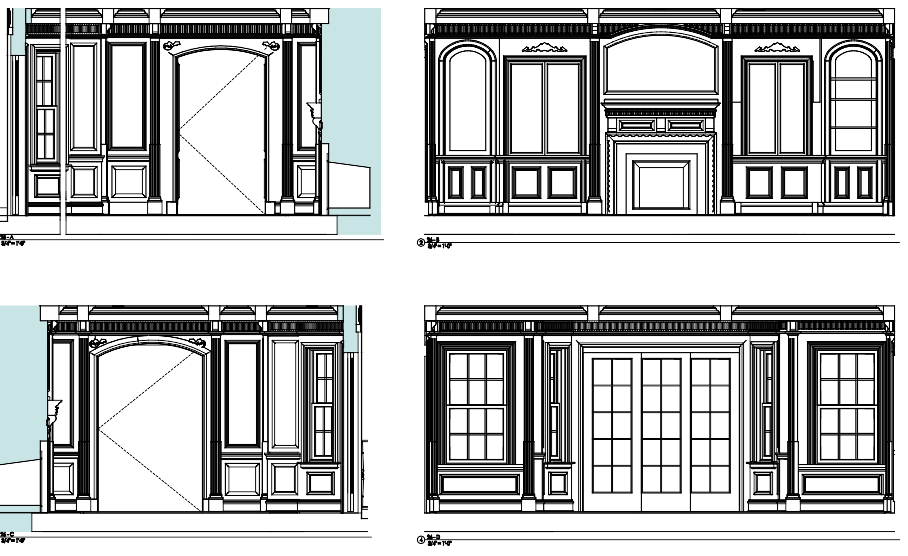

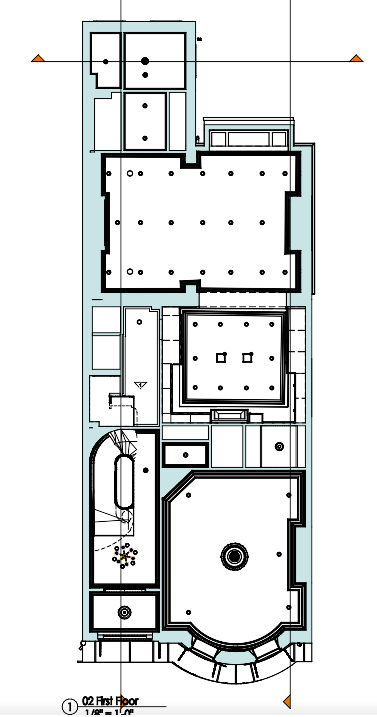

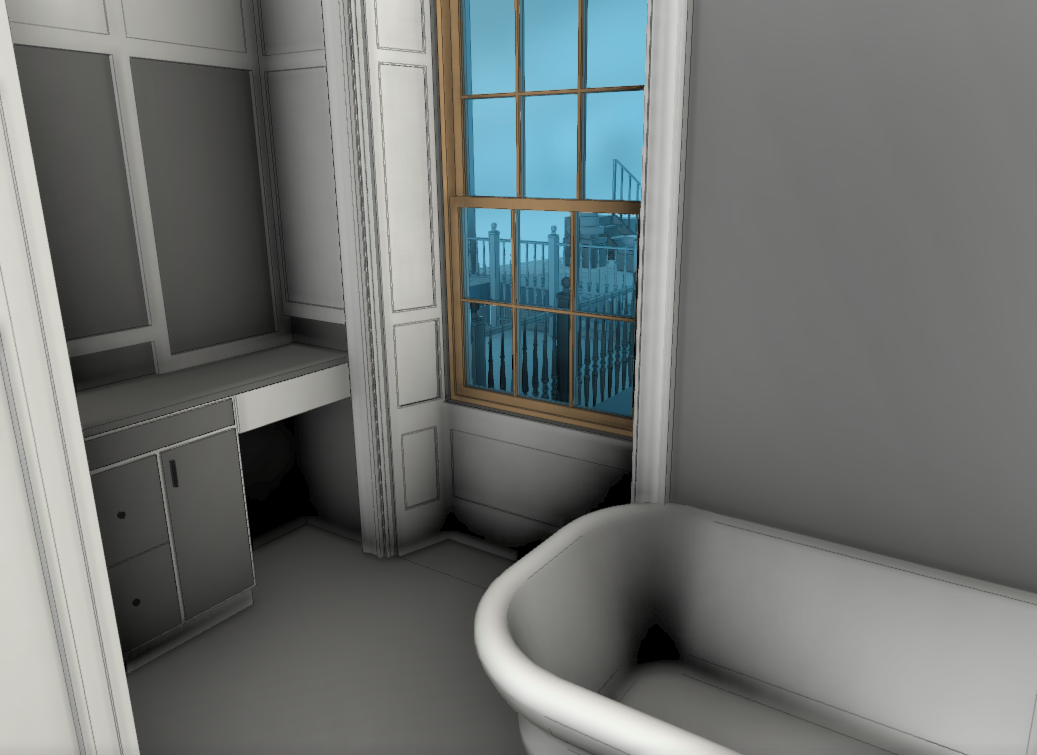

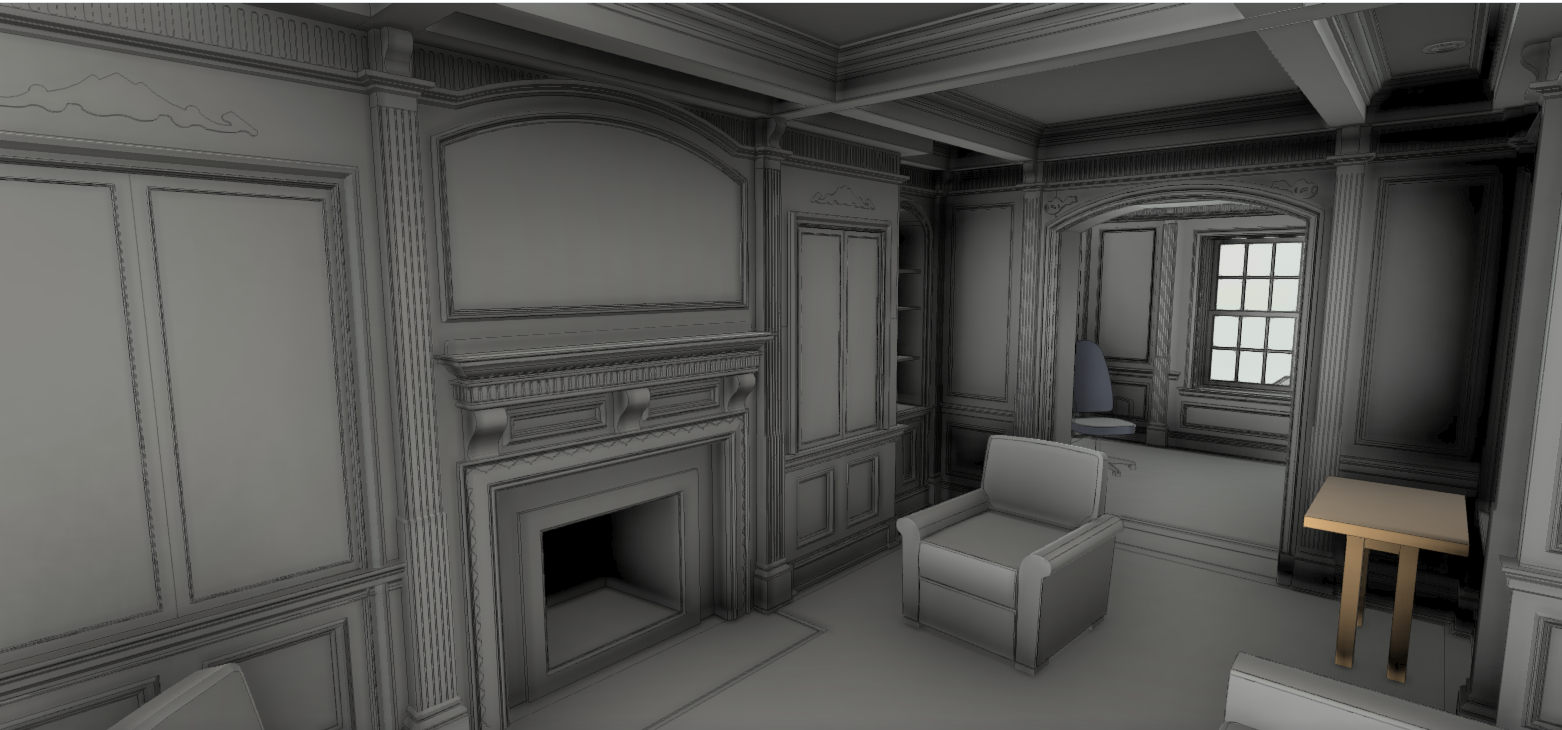

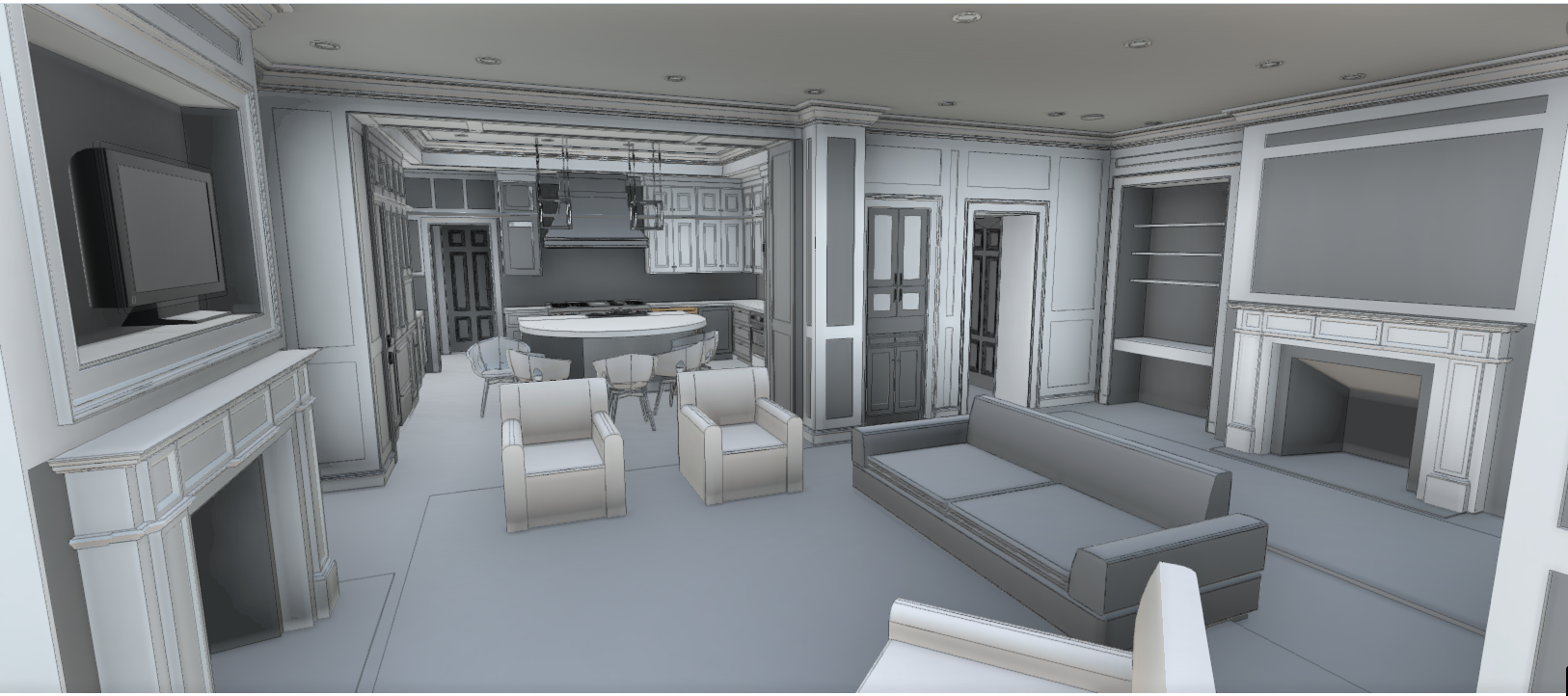

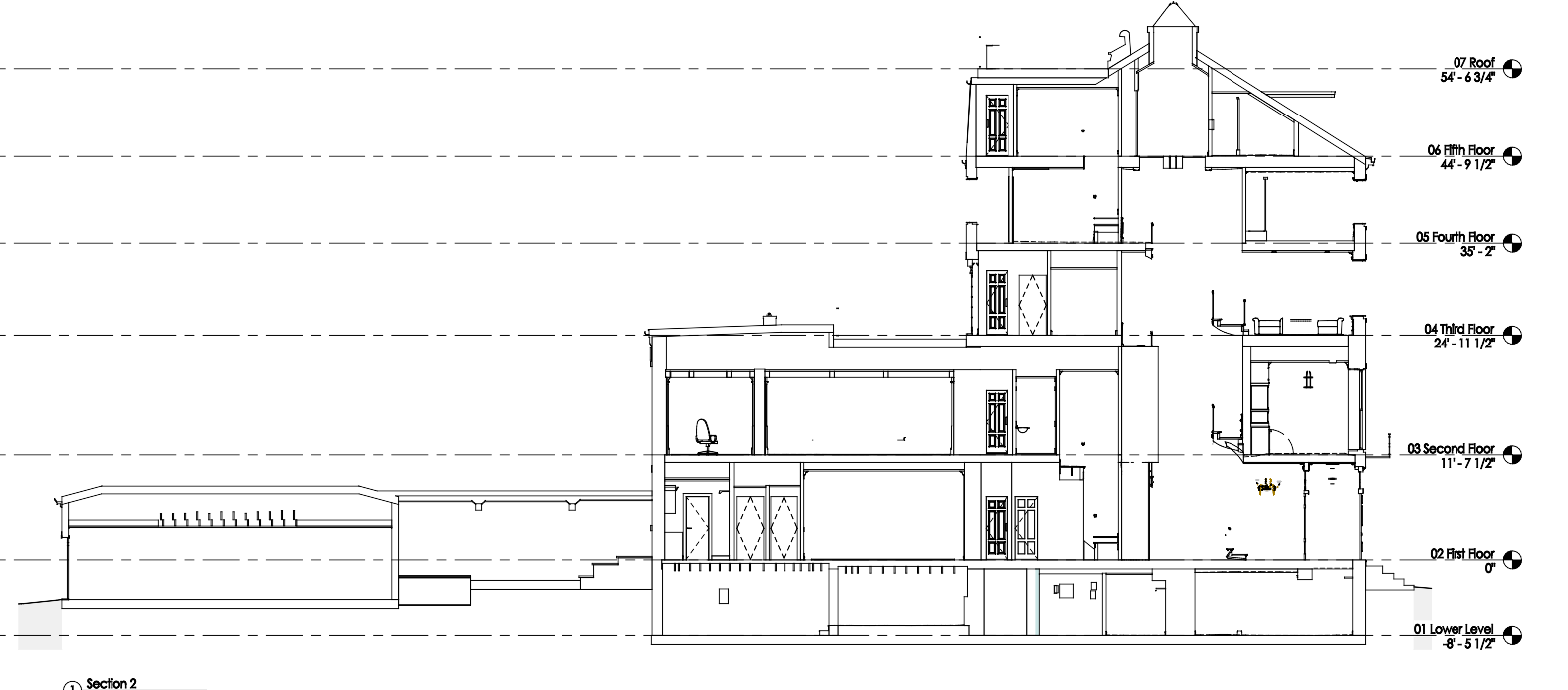

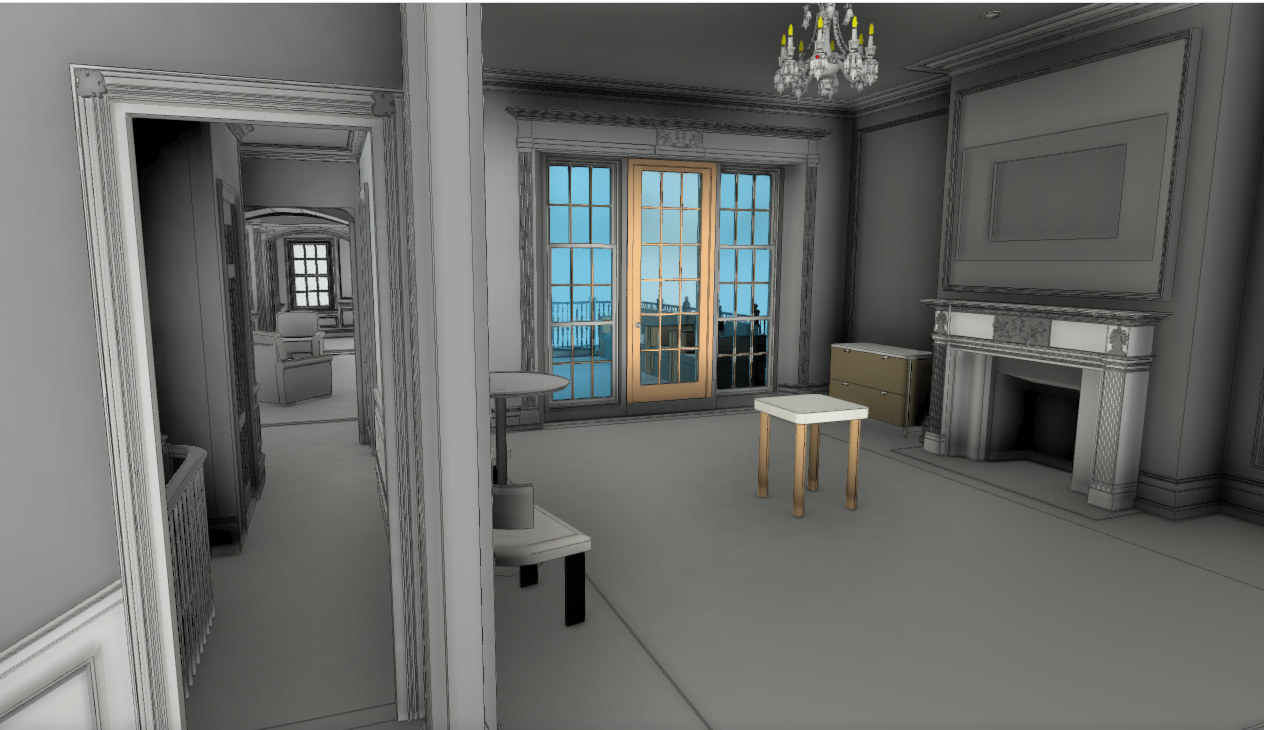

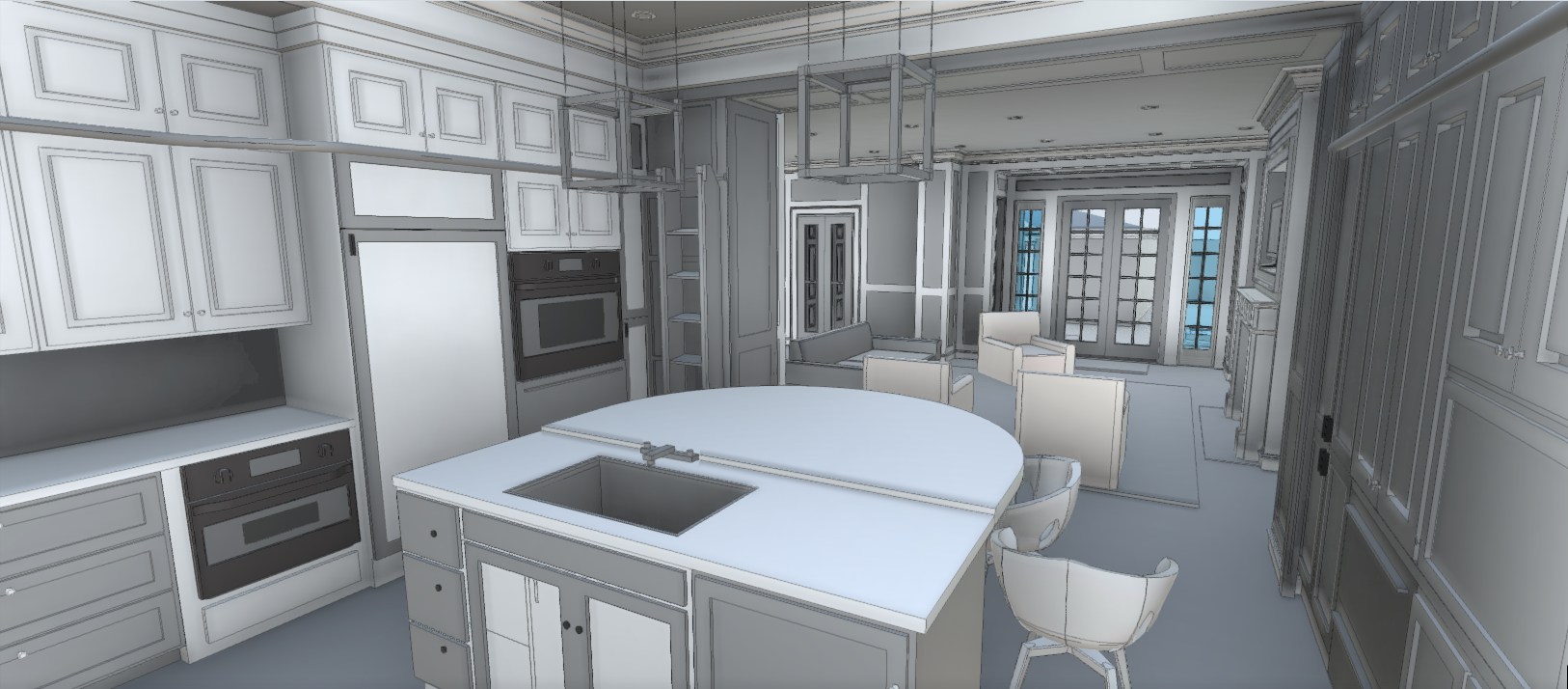

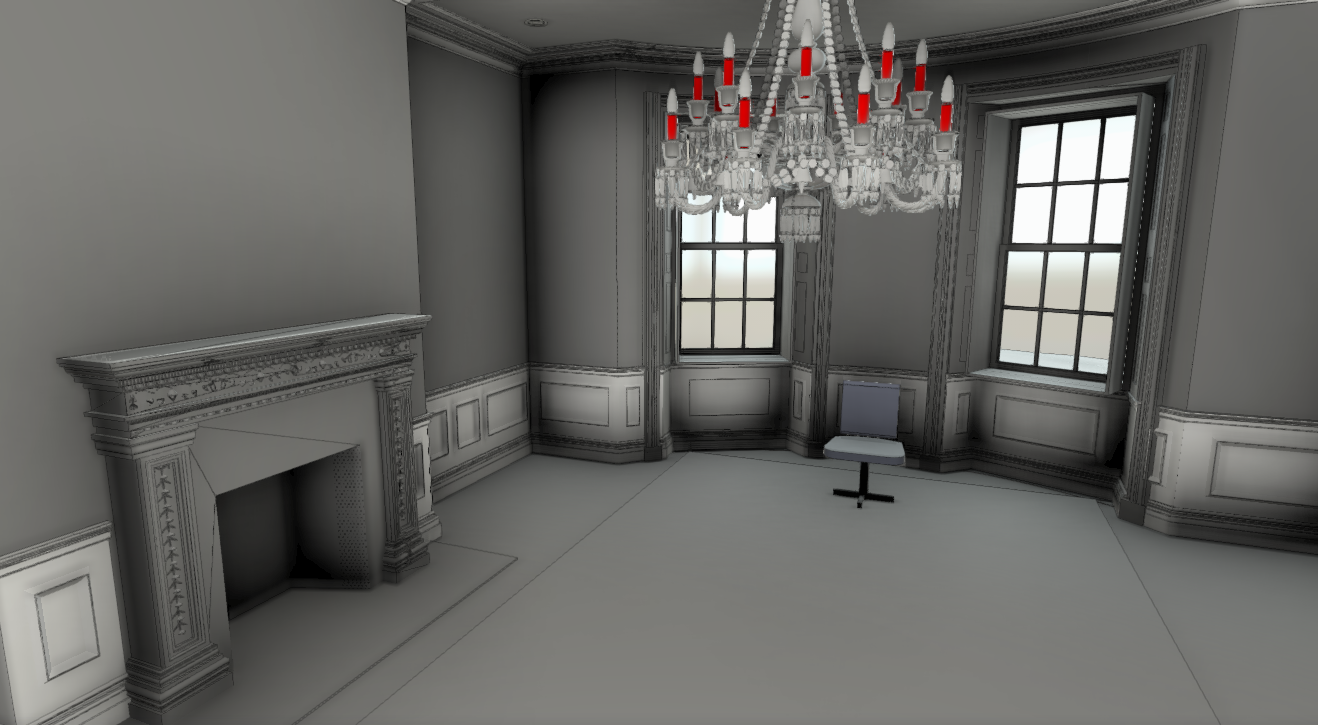

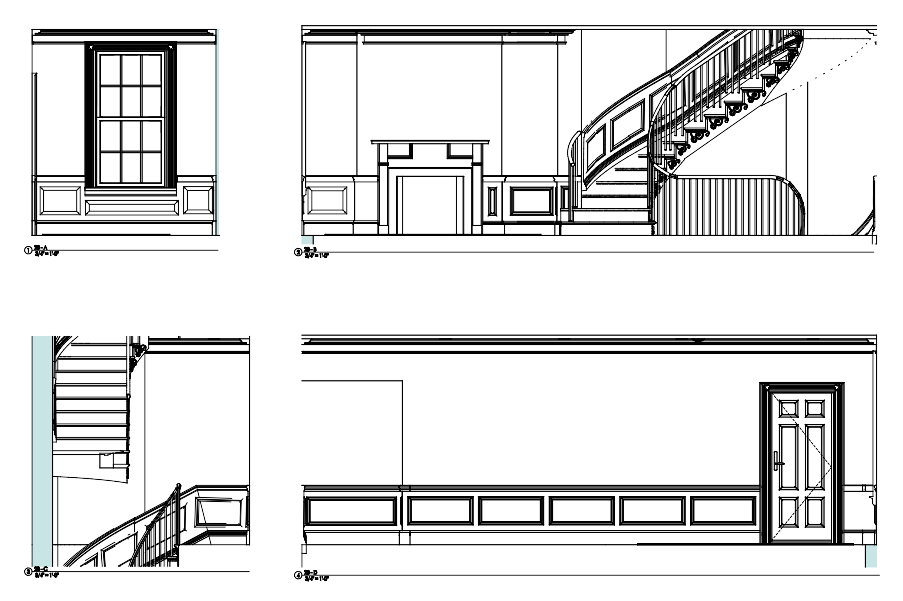

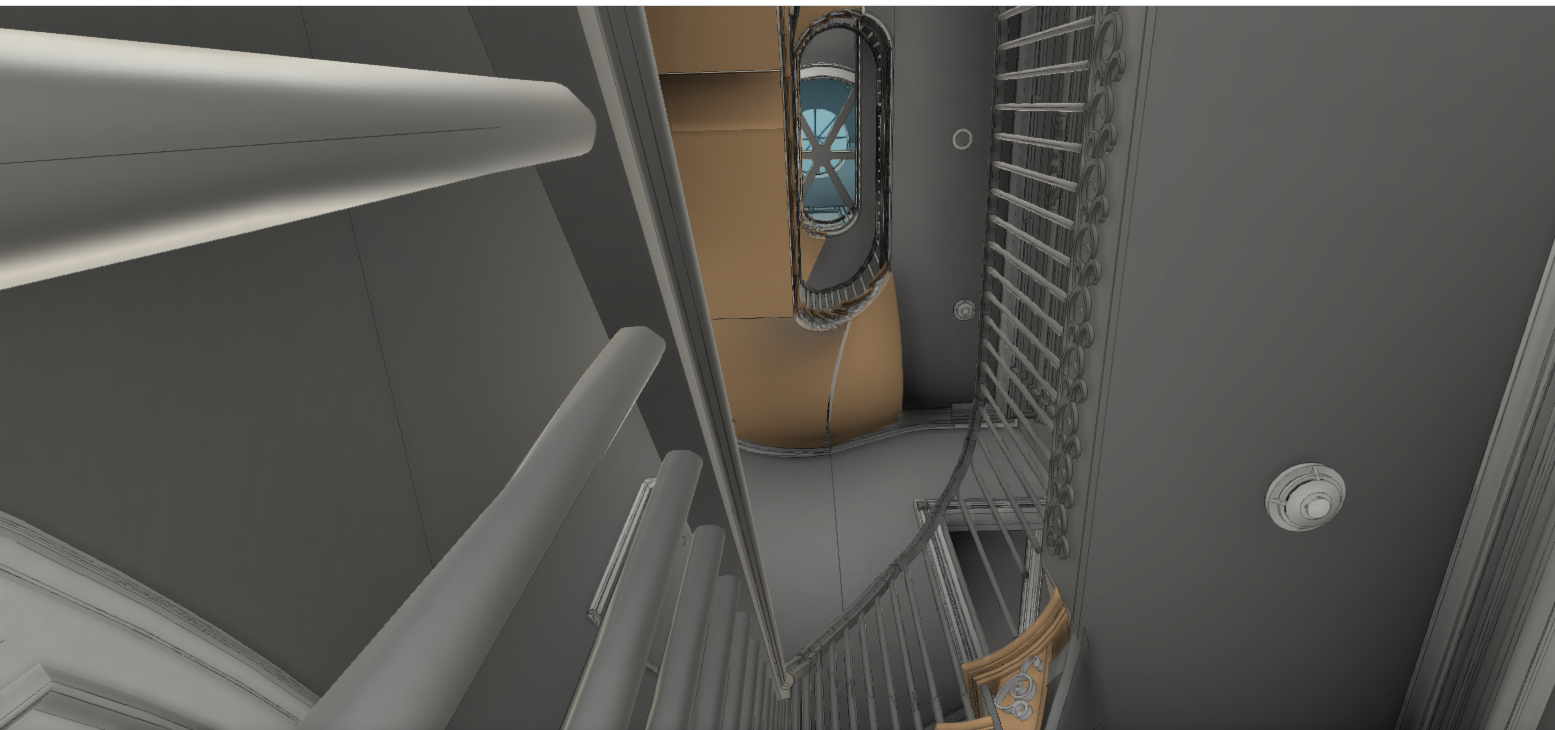

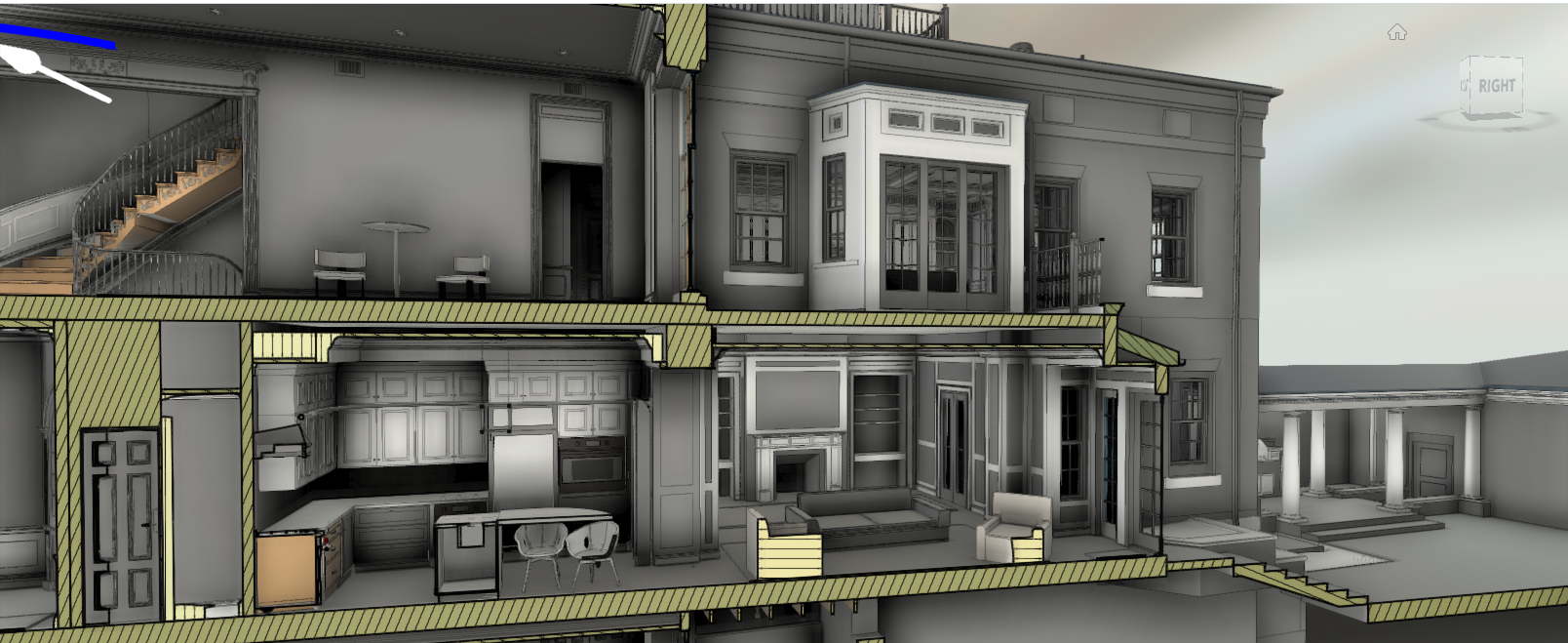

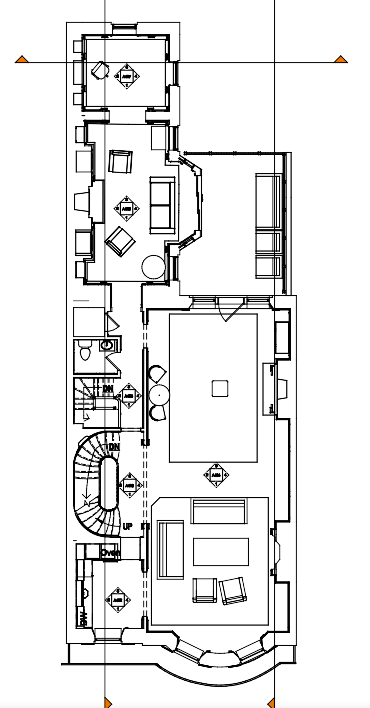

Integrate data, utilize client template and families. Create custom Revit families to represent all detail. Include full Reflected Ceiling Plan and set up interior elevations and paper space for every room across the property.

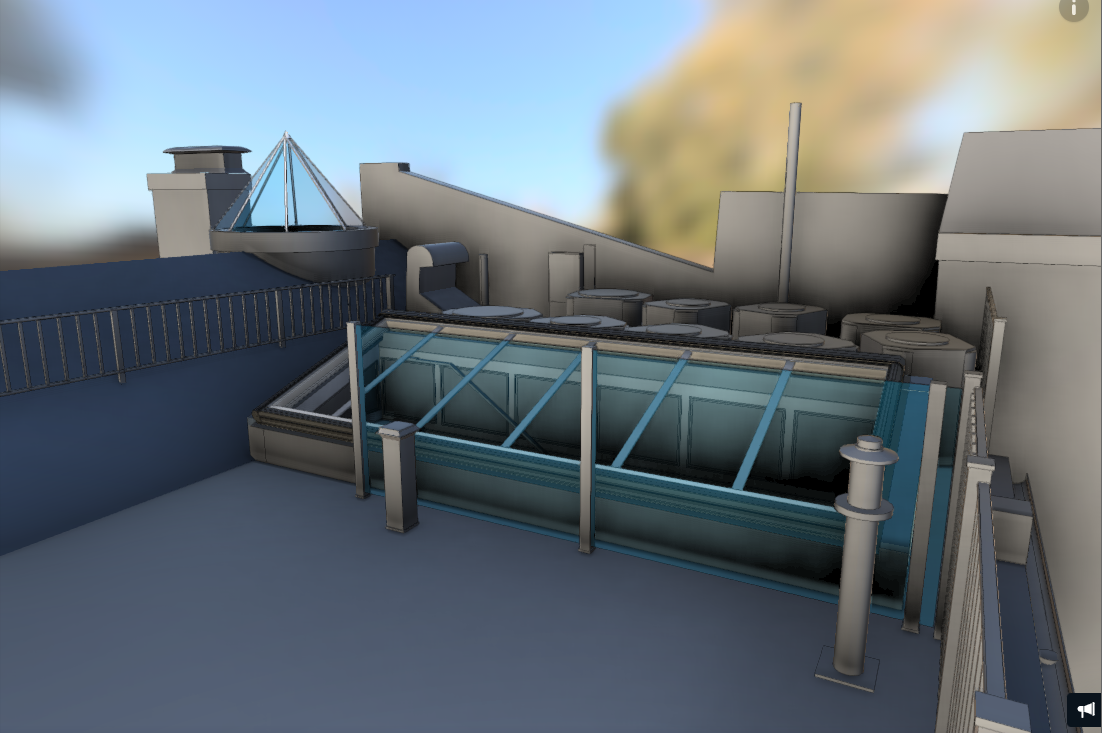

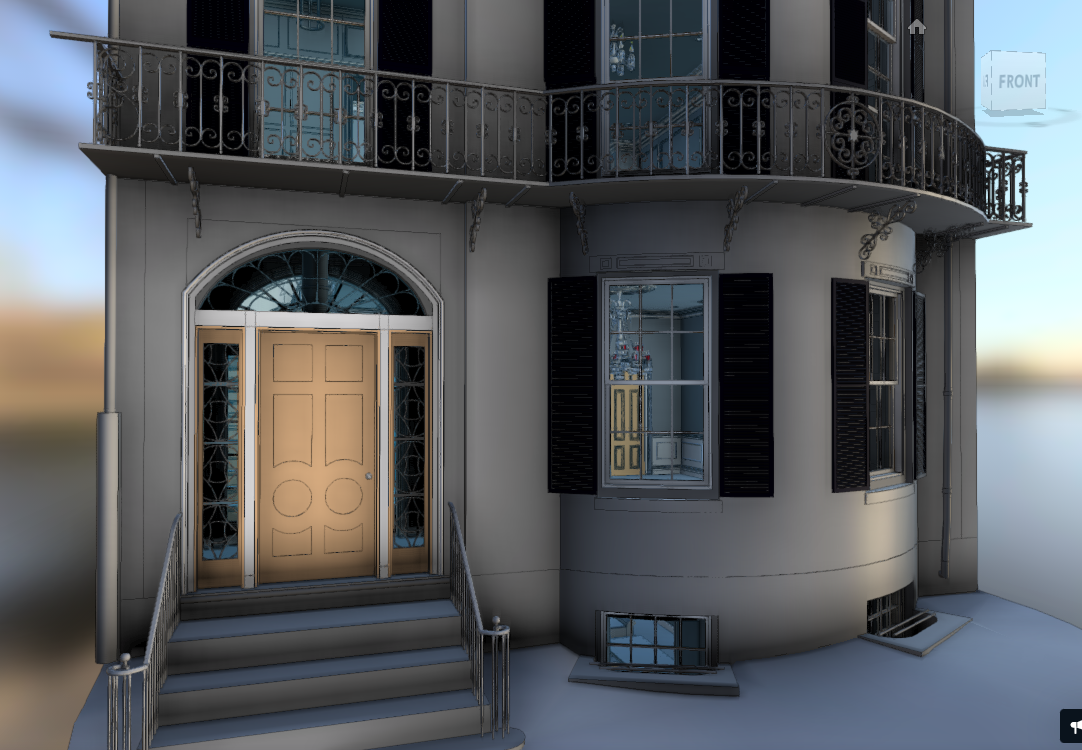

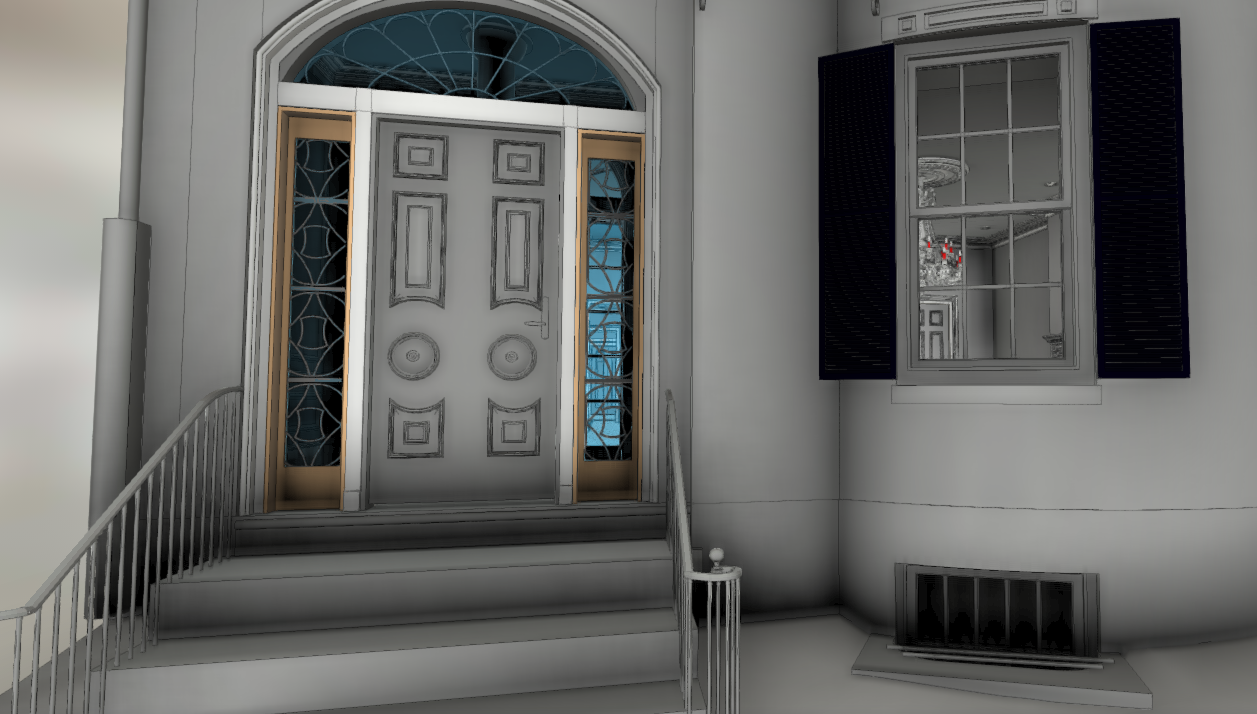

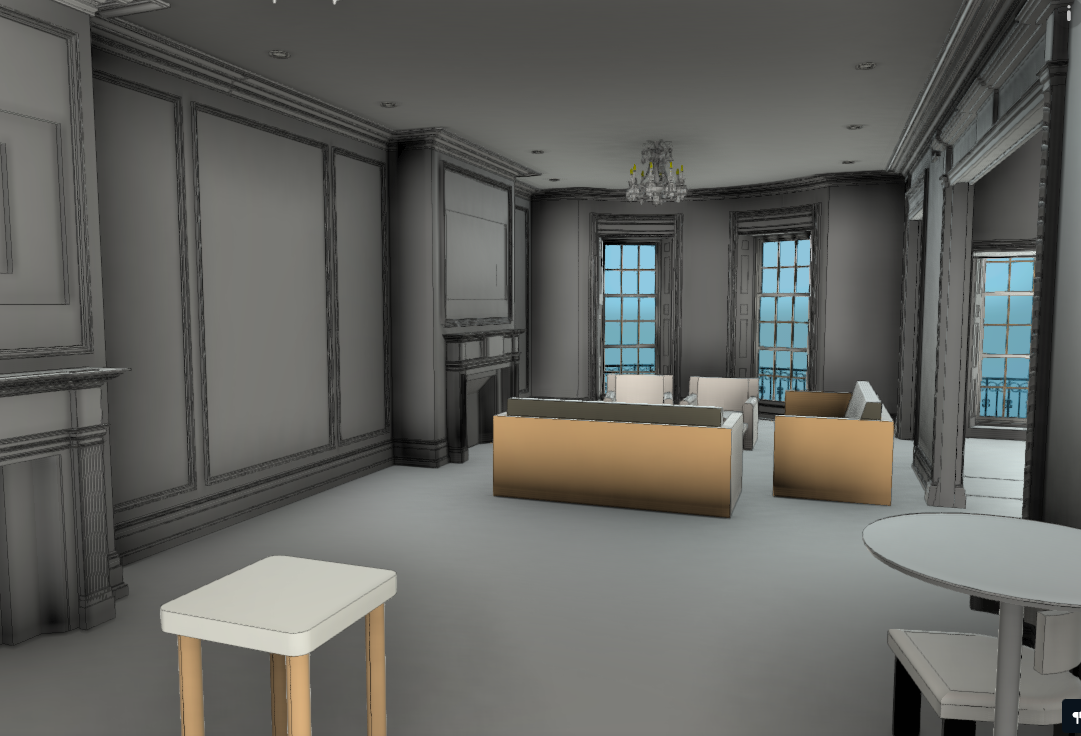

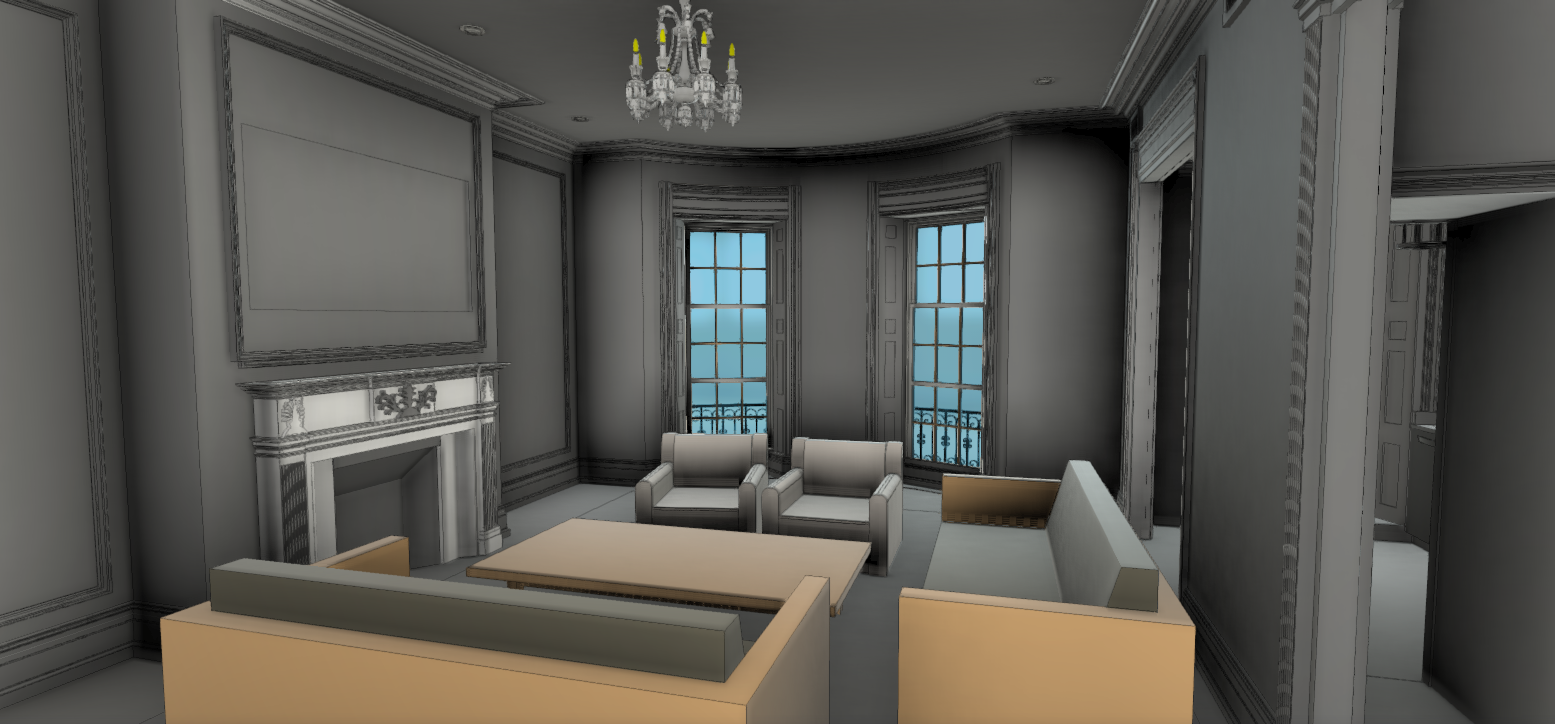

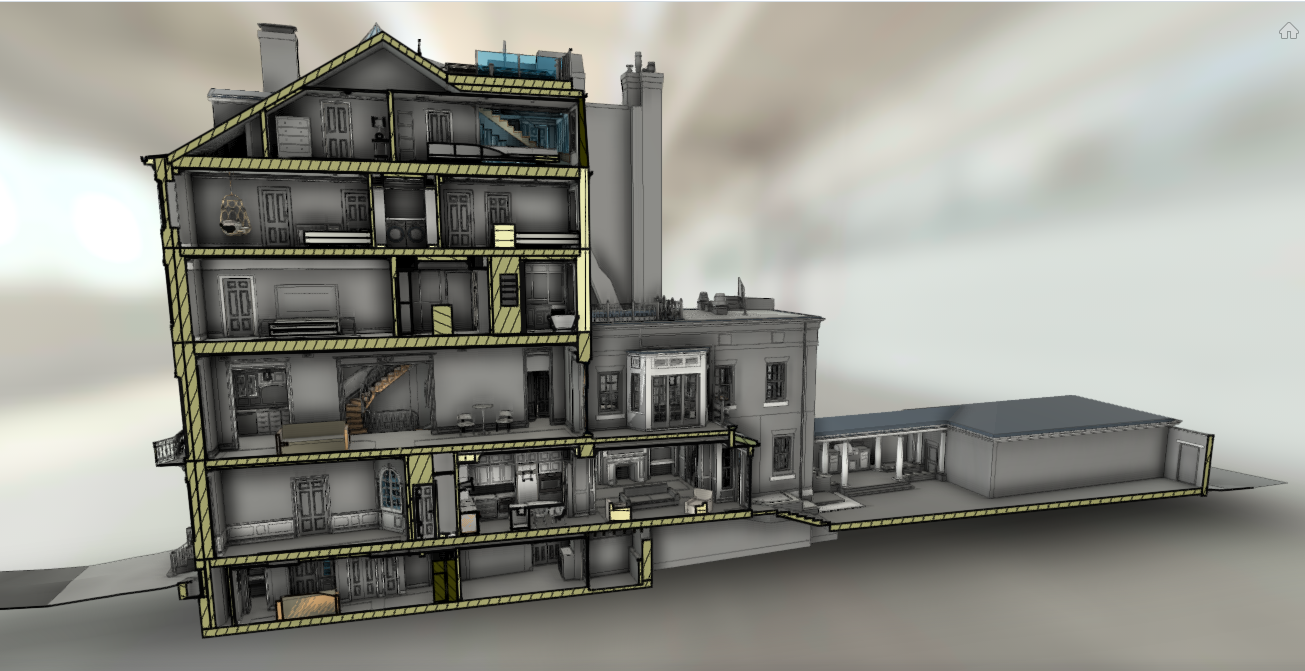

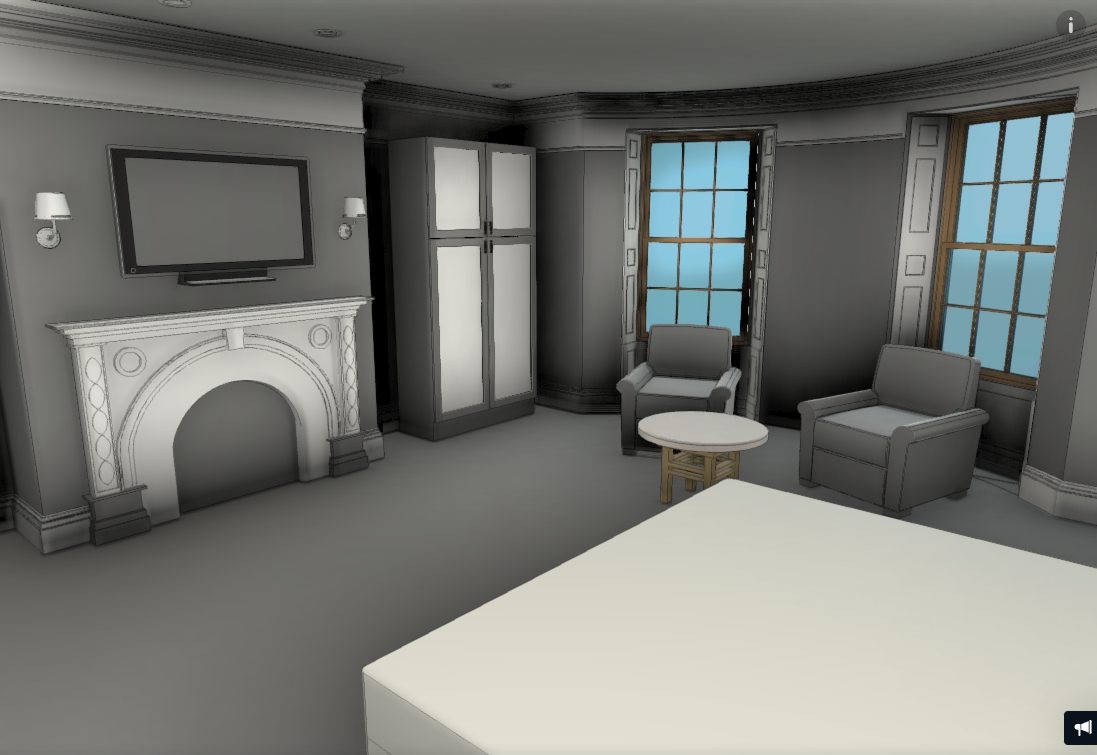

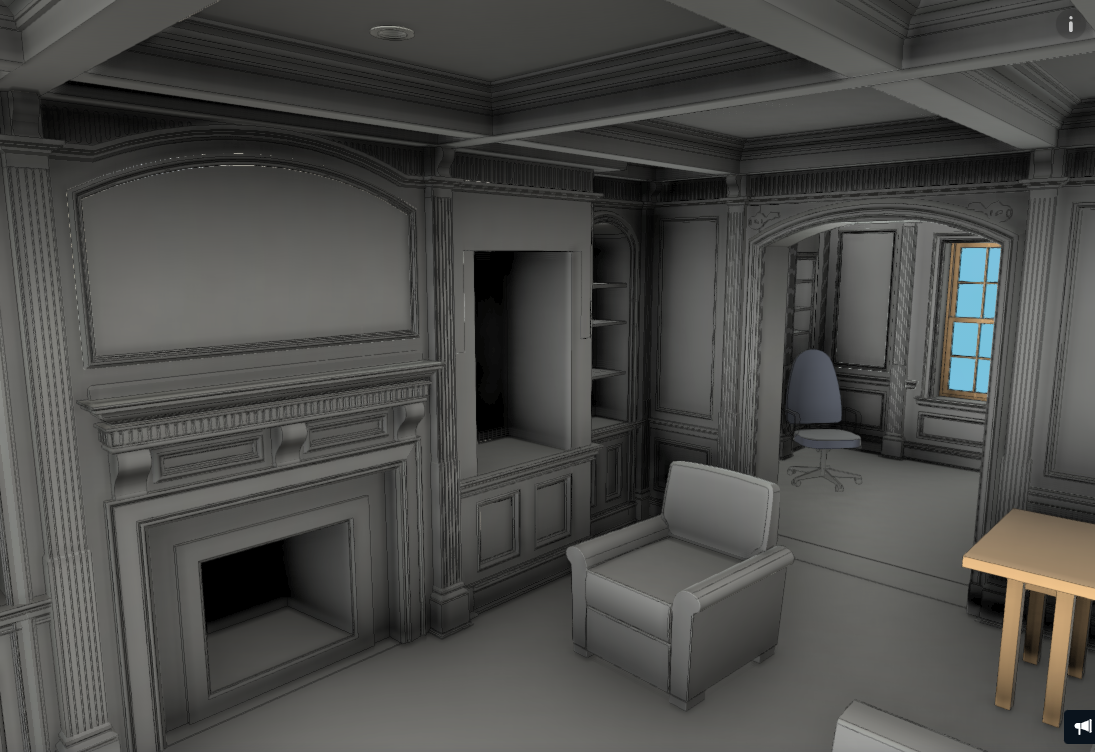

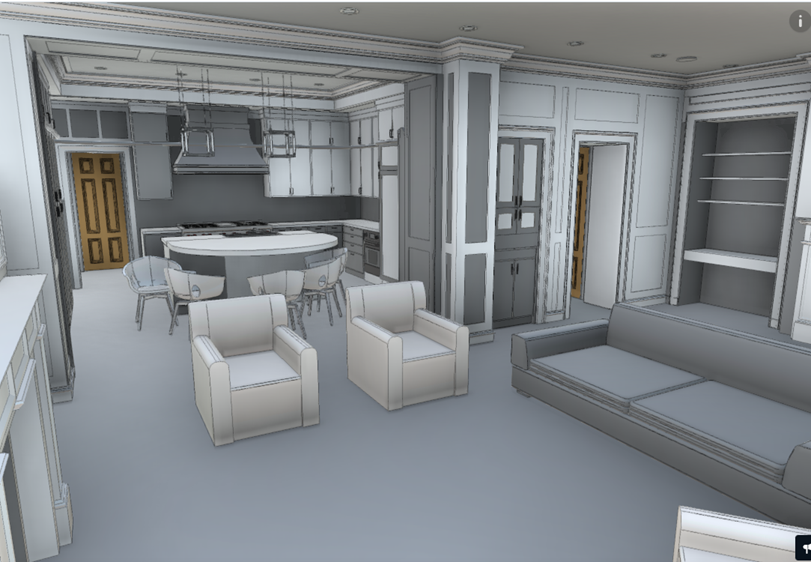

DELIVERABLE: Revit Model
TECHNOLOGY: SLAM Laser Scanners, Leica P Series Scanners, Tripod Mounted and Handheld Laser Range Finders. DJII Phantom Drone, ReCap, Revit, GeoSLAM, Cloud Compare. Pix4D, GoPro Max, GoProPlayer. Red Bull
